Components [11/2021 - ]

WARNING: This page is about a different car, the 2025 Lexus NX 350h, 2024 Lexus NX 350h, 2023 Lexus NX 350h, and 2022 Lexus NX 350h. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Hybrid Transaxle Fluid Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	NO. 2 ENGINE UNDER COVER ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

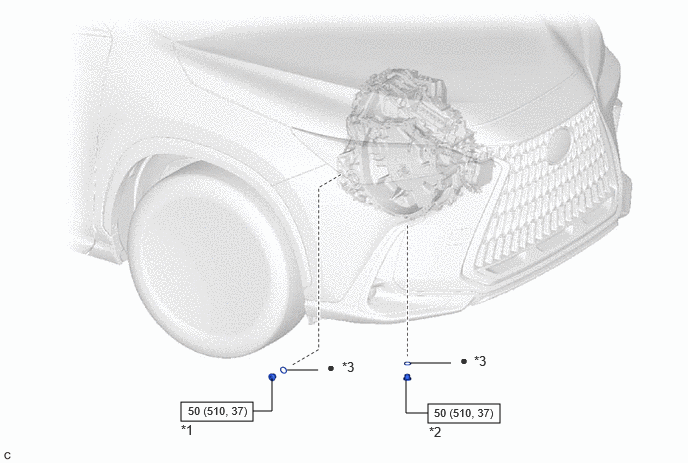

Fig 2: Hybrid Transaxle Fluid Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	FILLER PLUG	*2	DRAIN PLUG
*3	GASKET	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
