Removal [11/2021 - 03/2024]: Procedure
WARNING: This page is about a different car, the 2025 Lexus NX 350, 2024 Lexus NX 350, 2023 Lexus NX 350, and 2022 Lexus NX 350. However, it is still accessible from the selected car via links, so may be relevant.
- DRAIN COOLANT (for Intercooler)
Refer to REPLACEMENT [11/2021 - ]
- REMOVE RADIATOR ASSEMBLY
Refer to REMOVAL [11/2021 - ]

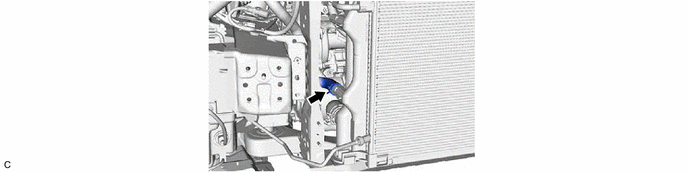

- DISCONNECT NO. 1 INTERCOOLER COOLING WATER HOSE

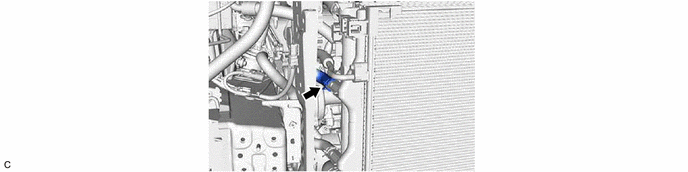

- DISCONNECT NO. 5 INTERCOOLER COOLING WATER HOSE
- REMOVE INTERCOOLER COOLING RADIATOR ASSEMBLY

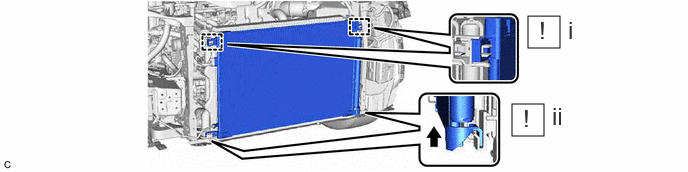

- Detach the 2 clamps.NOTE:
Do not apply any excessive force to the cooler condenser assembly and cooler pipe.
- Move the cooler condenser assembly upward and detach the 2 connections between the intercooler cooling radiator assembly and cooler condenser assembly.NOTE:
Do not apply any excessive force to the cooler condenser assembly and cooler pipe.
- Detach the 2 clamps.
- Move the cooler condenser assembly LH toward the front of the vehicle and pull up the intercooler cooling radiator assembly to remove it.NOTE:
- Do not apply any excessive force to the cooler condenser assembly and cooler pipe.
- Do not move the cooler condenser assembly toward the front of the vehicle more than necessary.
- Move the cooler condenser assembly LH toward the front of the vehicle and pull up the intercooler cooling radiator assembly to remove it.
