NOTE:
This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.
Refer to PRECAUTION [11/2021 - ]

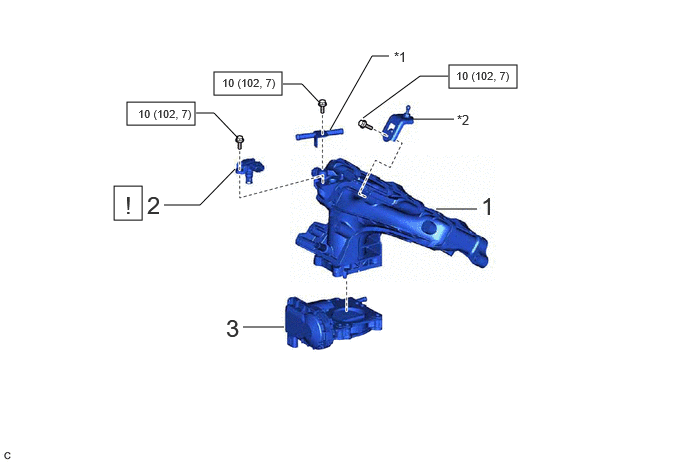

COMPONENTS (INSTALLATION)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | INTAKE MANIFOLD | 17111 | - | - | - |
| 2 | NO. 1 TURBO PRESSURE SENSOR | 89421K | See step 2 | - | - |
| 3 | THROTTLE BODY WITH MOTOR ASSEMBLY | 22030 | - | - | - |
| *1 | NO. 3 WATER BY-PASS PIPE | *2 | ENGINE COVER BRACKET |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
