Removal [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus NX 350, 2024 Lexus NX 350, 2023 Lexus NX 350, and 2022 Lexus NX 350. However, it is still accessible from the selected car via links, so may be relevant.

PRECAUTION

NOTE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

Refer to BEFORE DISCONNECTING BATTERY [11/2021 - ]

DISCHARGE FUEL SYSTEM PRESSURE
Refer to PRECAUTION [11/2021 - ]
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Refer to PROCEDURE - Step 2

REMOVE REAR SEAT CUSHION ASSEMBLY

for Manual Seat: Refer to PROCEDURE - Step 8
for Power Seat: Refer to PROCEDURE - Step 11

REMOVE REAR SEAT CUSHION LOCK HOOK
for Manual Seat: Refer to PROCEDURE - Step 9

for Power Seat: Refer to PROCEDURE - Step 12

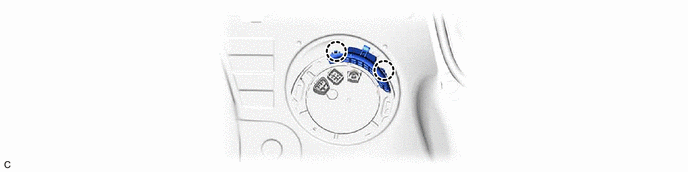

REMOVE REAR FLOOR SERVICE HOLE COVER (for LH Side)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using a clip remover with its tip wrapped with protective tape, remove the rear floor service hole cover and butyl tape.
Disconnect the 2 connectors.

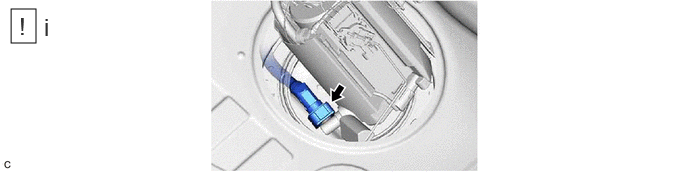

DISCONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Tube Joint Clip	*2	Fuel Tank Main Tube Sub-assembly
*a	Nylon Tube	*b	Fuel Tube Joint
*c	Fuel Suction Plate Sub-assembly	*d	O-ring
	Pull off		Pull off

Remove the tube joint clip, and pull off the fuel tube joint of the fuel tank main tube sub-assembly.
NOTE:
- Remove any foreign matter on the fuel tube joint before performing this work.
- Do not scratch or allow any foreign matter to get on the parts when disconnecting them as the fuel tube connector has O-rings that seal the pipe (fuel pipe).
- Be sure to disconnect the fuel tube joint by hand.
- Do not bend, twist, pinch or kink the nylon tube.
- Cover the disconnected fuel tube joint with a plastic bag to prevent damage and contamination.
- If the fuel tube joint and fuel suction plate sub-assembly are stuck, push and pull to release them.

REMOVE NO. 1 FUEL TUBE CLAMP

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

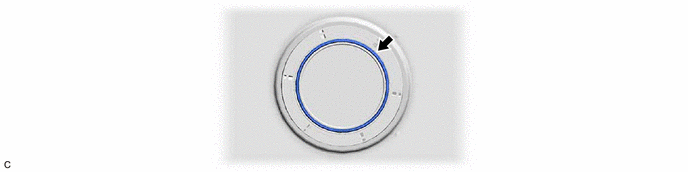

REMOVE FUEL PUMP GAUGE RETAINER

*a	SST (Plate)	*b	SST (Bolt)
*c	SST (Claw)	*d	SST (Handle)
*e	Insertion Point	-	-

Remove the fuel pump gauge retainer.
1. Temporarily install SST (plate) and SST (claw) to the fuel pump gauge retainer.
- SST: 09808-01071
- SST: 09808-14031
  1. 09808-01030
  2. 09808-01090
HINT:

Securely insert the ends of SST (claw) into the insertion points in the fuel pump gauge retainer.

2. While firmly pressing SST (claw) into the insertion points in the fuel pump gauge retainer, tighten SST (bolt).

3. Install SST (handle) to SST (plate).
- SST: 09808-14031
  1. 09808-01010
4. Lightly press down on SST to prevent it from separating from the fuel pump gauge retainer. While pressing down on SST, rotate SST (handle) slowly to loosen the fuel pump gauge retainer.
NOTE:
- Do not use any tools other than specified as this may result in damage to the fuel pump gauge retainer or fuel tank sub-assembly.
- Do not press down on SST excessively as this may make the fuel pump gauge retainer hard to rotate, and may damage components.
- Make sure to rotate SST (handle) horizontally. If it is rotated at an angle, SST may come off.
- Do not spin SST too fast or use an impact wrench as this may result in damage to components.
- If SST comes off of the fuel pump gauge retainer, loosen SST (bolt) and reinstall SST.
5. While pressing down on the fuel suction tube with pump and gauge assembly, remove the fuel pump gauge retainer.

REMOVE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

Disconnect the fuel return vent tube sub-assembly and remove the fuel suction tube with pump and gauge assembly from the fuel tank sub-assembly.
Refer to PRECAUTION [11/2021 - ]

NOTE:
Be careful not to bend the arm of the fuel sender gauge assembly.

REMOVE FUEL SUCTION TUBE SET GASKET
