NOTE:

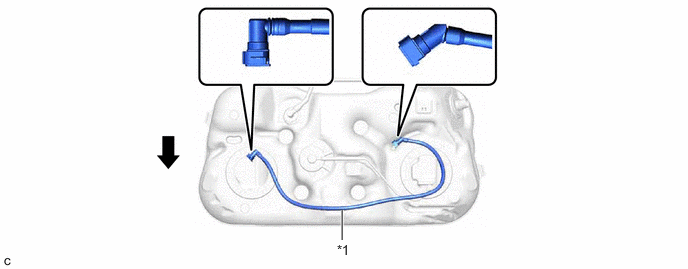

Make sure to correctly assemble the fuel return vent tube sub-assembly as shown in the illustration. If assembled incorrectly, the fuel sender gauge assembly (No. 2 fuel sender gauge assembly) may catch on the fuel return vent tube sub-assembly resulting in incorrect operation of the fuel sender gauge assembly (No. 2 fuel sender gauge assembly) and an incorrect value being displayed on the fuel gauge.
| *1 | Fuel Return Vent Tube Sub-assembly | - | - |
| Front of the Vehicle | - | - |
COMPONENTS (INSTALLATION)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | FUEL SUCTION TUBE SET GASKET | 77169A | - | - | - |
| 2 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY | 77020A | See step 2 | - | - |
| 3 | FUEL PUMP GAUGE RETAINER | 77144 | See step 3 | - | - |
| 4 | NO. 1 FUEL TUBE CLAMP | 77285G | - | - | - |
| 5 | FUEL TANK MAIN TUBE SUB-ASSEMBLY | 77209F | See step 5 | - | - |
| 6 | REAR FLOOR SERVICE HOLE COVER (for LH Side) | 58325E | See step 6 | - | - |
| *1 | TUBE JOINT CLIP | *2 | BUTYL TAPE |
| *3 | FUEL RETURN VENT TUBE SUB-ASSEMBLY | - | - |
| • | Non-reusable part | - | - |
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 7 | CONNECT CABLE TO NEGATIVE BATTERY TERMINAL | - | - | - | - |
| 8 | INSPECT FOR FUEL LEAK | - | - | - | See step 8 |
| 9 | REAR SEAT CUSHION LOCK HOOK | 72693 | - | - | - |
| 10 | REAR SEAT CUSHION ASSEMBLY | - | See step 10 | - | - |
| 11 | PERFORM INITIALIZATION | - | - | - | See step 11 |
| 12 | INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL | - | - | - | See step 12 |
| • | Non-reusable part | - | - |
