Removal [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus NX 350, 2024 Lexus NX 350, 2023 Lexus NX 350, and 2022 Lexus NX 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FUEL PUMP

    Refer to DISASSEMBLY [11/2021 - ]

  2. REMOVE NO. 2 FUEL MAIN VALVE ASSEMBLY

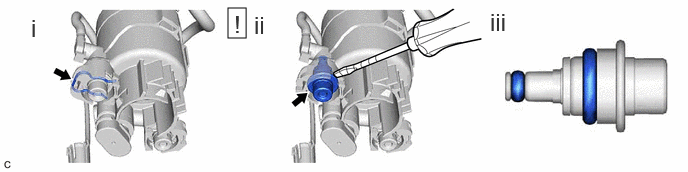

    1. GTY1075260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the clip from the fuel filter.
      2. Using a screwdriver with its tip wrapped with protective tape, remove the No. 2 fuel main valve assembly from the fuel filter.
        NOTE:
        • Pull out the No. 2 fuel main valve assembly carefully because the O-rings are firmly installed between the No. 2 fuel main valve assembly and fuel filter.
        • Do not damage the fuel filter.
      3. Remove the 2 O-rings from the No. 2 fuel main valve assembly.
  3. REMOVE FUEL MAIN VALVE ASSEMBLY

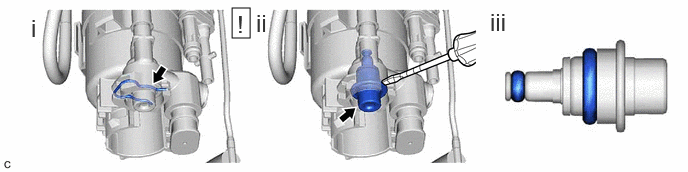

    1. GTY1075290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the clip from the fuel filter.
      2. Using a screwdriver with its tip wrapped with protective tape, remove the fuel main valve assembly from the fuel filter.
        NOTE:
        • Pull out the fuel main valve assembly carefully because the O-rings are firmly installed between the fuel main valve assembly and fuel filter.
        • Do not damage the fuel filter.
      3. Remove the 2 O-rings from the fuel main valve assembly.
