Check Bus 7 Line [03/2024 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus NX 350h, 2024 Lexus NX 350h, 2023 Lexus NX 350h, and 2022 Lexus NX 350h. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FOR OPEN IN CAN MAIN BUS LINES
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Measure the resistance according to the value(s) in the table below.

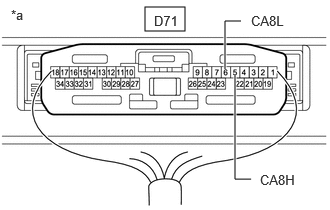

      GTY1059843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      D71-5 (CA8H) - D71-6 (CA8L) Cable disconnected from negative (-) auxiliary battery terminal Below 70 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  11

    Result:

    OK

    See step  2

  2. CHECK FOR SHORT IN CAN BUS LINES
    1. Measure the resistance according to the value(s) in the table below.
      GTY1059843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      D71-5 (CA8H) - D71-6 (CA8L) Cable disconnected from negative (-) auxiliary battery terminal 54 Ω or higher

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  9

    Result:

    OK

    See step  3

  3. CHECK FOR SHORT TO +B IN CAN BUS LINE
    1. Measure the resistance according to the value(s) in the table below.

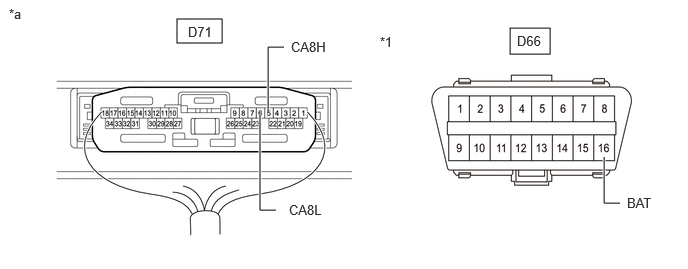

      GTY1060287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      D71-5 (CA8H) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D71-6 (CA8L) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  7

    Result:

    OK

    See step  4

  4. CHECK FOR SHORT TO GND IN CAN BUS LINE
    1. Measure the resistance according to the value(s) in the table below.

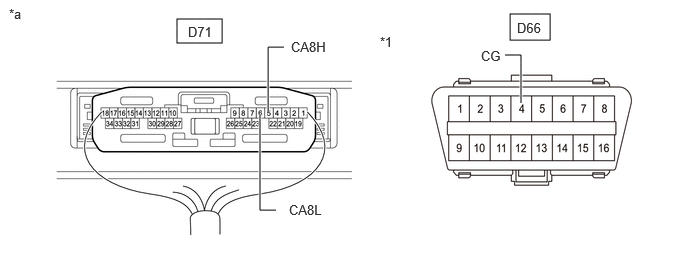

      GTY1059734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      D71-5 (CA8H) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D71-6 (CA8L) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU). Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    See step  5

  5. CHECK FOR SHORT TO GND IN CAN BUS LINE (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the D71 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D71-5 (CA8H) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D71-6 (CA8L) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU). Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    See step  6

  6. CHECK FOR SHORT TO GND IN CAN BUS LINE (OPTION CONNECTOR (BUS BUFFER ECU))
    1. Disconnect the D84 option connector (bus buffer ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D84-2 (CAN+) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D84-1 (CAN-) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPAIR OR REPLACE CAN COMPATIBLE OPTIONAL DEVICES

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (OPTION CONNECTOR (BUS BUFFER ECU) - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  7. CHECK FOR SHORT TO +B IN CAN BUS LINE (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the D71 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D71-5 (CA8H) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D71-6 (CA8L) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU). Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    See step  8

  8. CHECK FOR SHORT TO +B IN CAN BUS LINE (OPTION CONNECTOR (BUS BUFFER ECU))
    1. Disconnect the D84 option connector (bus buffer ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D84-2 (CAN+) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D84-1 (CAN-) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPAIR OR REPLACE CAN COMPATIBLE OPTIONAL DEVICES

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (OPTION CONNECTOR (BUS BUFFER ECU) - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  9. CHECK FOR SHORT IN CAN BUS LINES (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the D71 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D71-5 (CA8H) - D71-6 (CA8L) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU). Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    See step  10

  10. CHECK FOR SHORT IN CAN BUS LINES (OPTION CONNECTOR (BUS BUFFER ECU))
    1. Reconnect the D71 central gateway ECU (network gateway ECU) connector.
    2. Disconnect the D84 option connector (bus buffer ECU) connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D84-2 (CAN+) - D84-1 (CAN-) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    OK

    REPAIR OR REPLACE CAN COMPATIBLE OPTIONAL DEVICES

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (OPTION CONNECTOR (BUS BUFFER ECU) - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  11. CHECK FOR OPEN IN CAN MAIN BUS LINES (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the D71 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D71-5 (CA8H) - D71-6 (CA8L) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU). Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    See step  12

  12. CHECK FOR OPEN IN CAN MAIN BUS LINES (OPTION CONNECTOR (BUS BUFFER ECU))
    1. Reconnect the D71 central gateway ECU (network gateway ECU) connector.
    2. Disconnect the D84 option connector (bus buffer ECU) connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D84-2 (CAN+) - D84-1 (CAN-) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    OK

    REPAIR OR REPLACE CAN COMPATIBLE OPTIONAL DEVICES

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (OPTION CONNECTOR (BUS BUFFER ECU) - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
