Removal [11/2021 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [11/2021 - ]
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

  3. REMOVE V-RIBBED BELT

    Refer to REMOVAL [11/2021 - ]

  4. DISCONNECT ENGINE WIRE

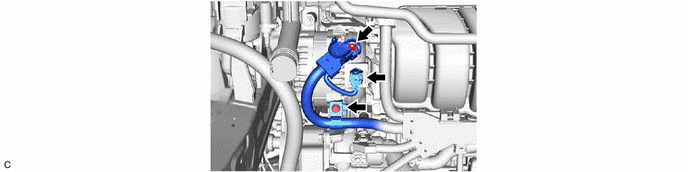

    1. GTY1075162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE GENERATOR ASSEMBLY

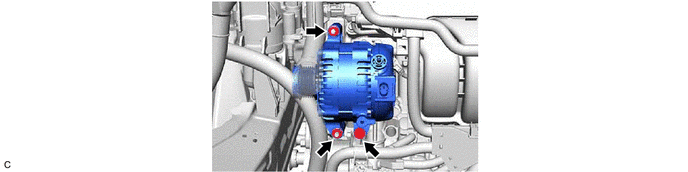

    1. GTY1075154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
