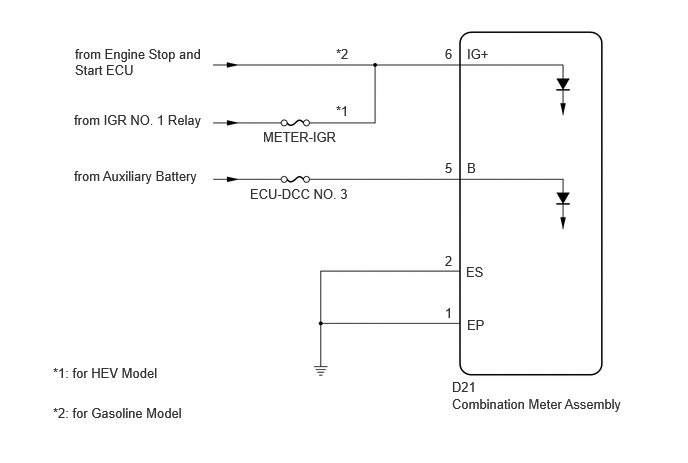

Power Source Circuit [11/2021 - ]: Wiring Diagram

GTY1070199

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
