DTC B1512-87: Lost Communication with Steering Switch Control Module Missing Message; DTC B1513-87: Lost Communication with Steering Switch Control Module (Multiplex Switch) Missing Message [11/2021 - ]: Wiring Diagram

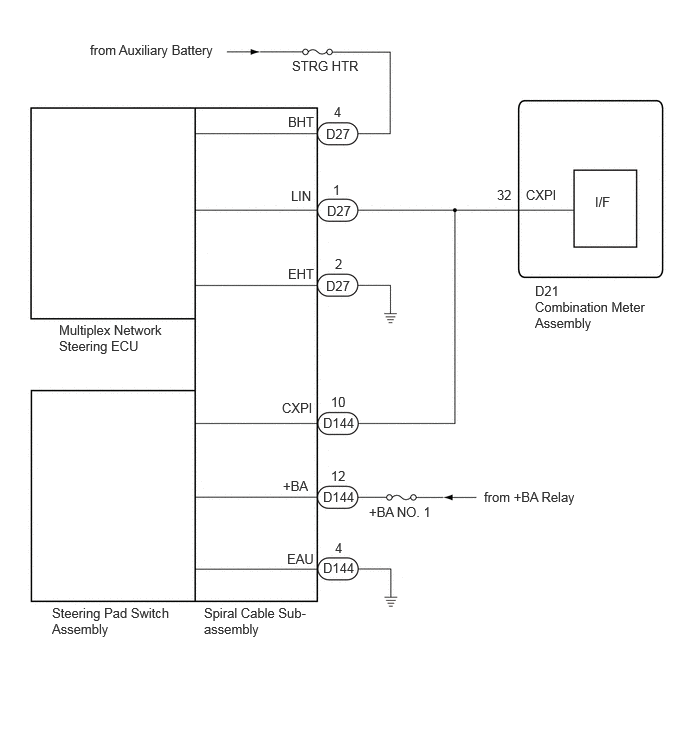

w/ Touch Tracer Operation

GTY1071488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/o Touch Tracer Operation

GTY1072191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
