Disassembly [11/2021 - 03/2024]: Procedure

  1. REMOVE HEADLIGHT ASSEMBLY
    1. for Bulb Type Turn Signal Light: Refer to REMOVAL [11/2021 - ]
    2. for LED Type Turn Signal Light: Refer to REMOVAL [11/2021 - ]
  2. REMOVE FRONT BUMPER SIDE RETAINER

    Refer to PROCEDURE - Step 43 [11/2021 - 03/2022] , or refer to PROCEDURE - Step 44 [03/2022 - ]

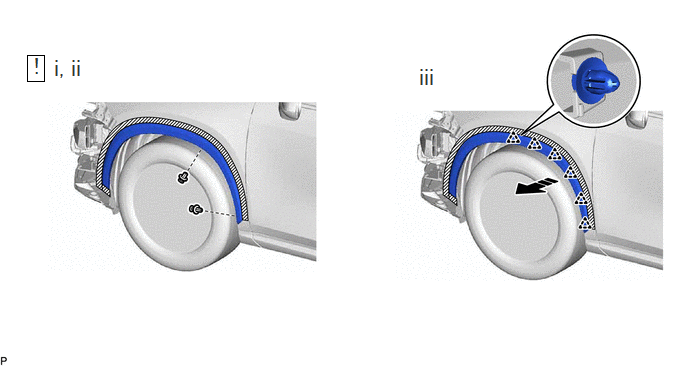

  3. REMOVE FRONT FENDER MOULDING SUB-ASSEMBLY
    1. GTY1057323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Apply protective tape around the front fender moulding sub-assembly LH.
      2. Remove the 2 clips.
      3. Disengage the 6 clips and remove the front fender moulding sub-assembly as shown in the illustration.
  4. REMOVE FENDER PANEL MUDGUARD SUB-ASSEMBLY

    See step  2

  5. REMOVE WHEEL ASSEMBLY

    Refer to REMOVAL [11/2021 - 03/2024]

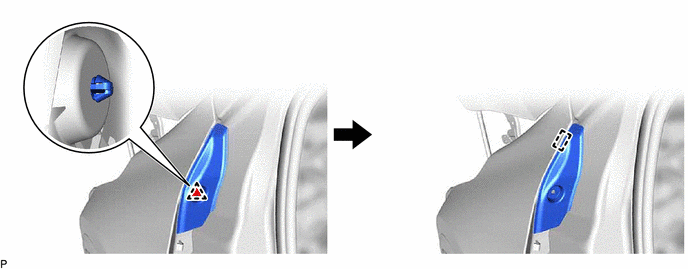

  6. REMOVE FRONT FENDER TO DOOR HINGE UPPER SEAL
    1. GTY1052925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE FRONT FENDER FRONT SPLASH SHIELD

    Refer to PROCEDURE - Step 52 [11/2021 - 03/2022] , or refer to PROCEDURE - Step 53 [03/2022 - ]

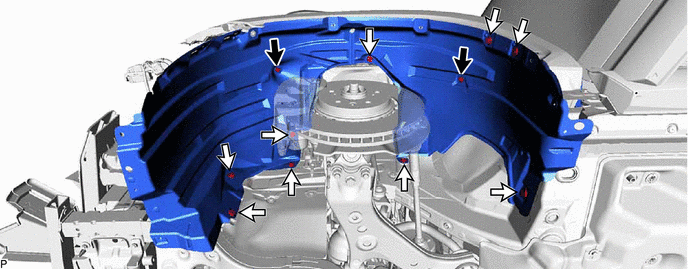

  8. REMOVE FRONT FENDER LINER
    1. GTY1053965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw Clip

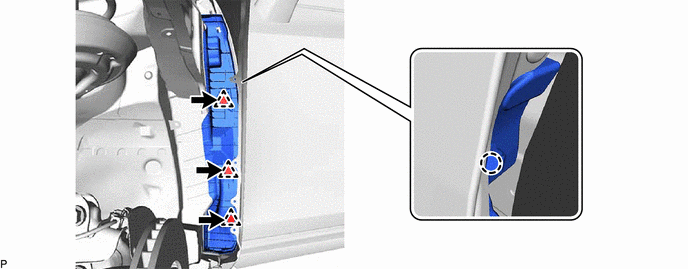

  9. REMOVE FRONT FENDER SIDE PANEL PROTECTOR
    1. GTY1052920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE FRONT NO. 2 FENDER NAME PLATE (for Sport Package)
    Refer to PROCEDURE - Step 3

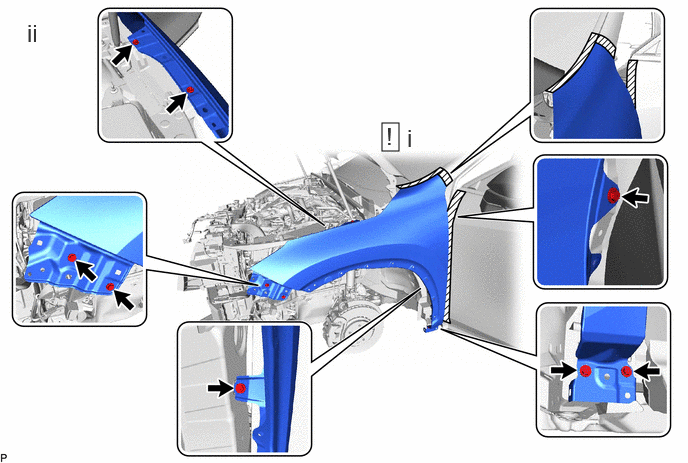

  11. REMOVE FRONT FENDER SUB-ASSEMBLY
    1. GTY1053600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt - -
      1. Apply protective tape around the front fender sub-assembly as shown in the illustration.
      2. Remove the 8 bolts and front fender sub-assembly.

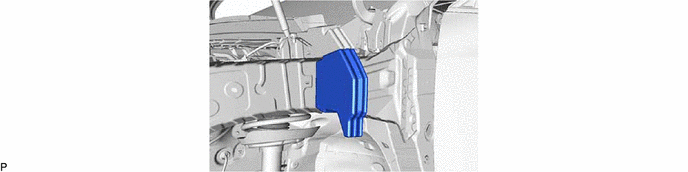

  12. REMOVE RADIATOR GRILLE SIDE AIR GUIDE
    1. GTY1052900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

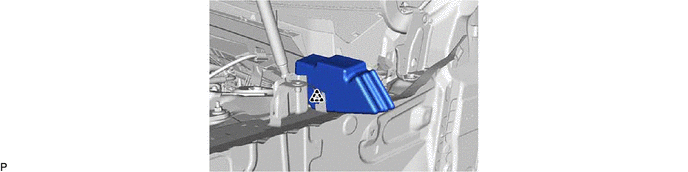

  13. REMOVE NO. 2 RADIATOR GRILLE SEAL
    1. GTY1052898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
