Caution / Notice / Hint

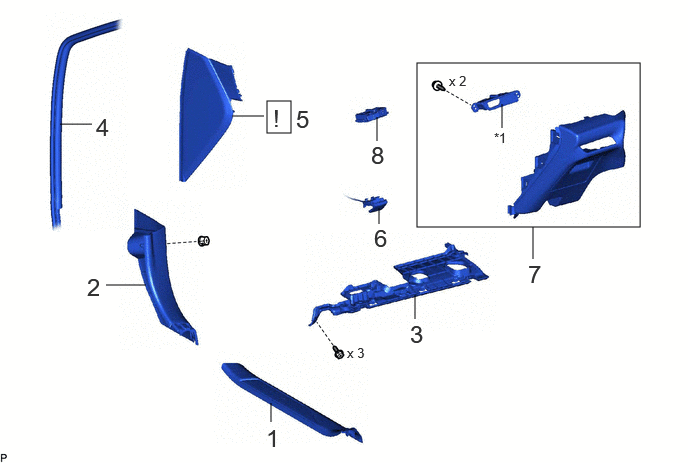

COMPONENTS (REMOVAL)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | DOOR SCUFF PLATE ASSEMBLY LH | 67920 | - | - | - |
| 2 | COWL SIDE TRIM SUB-ASSEMBLY LH | 62112A | - | - | - |
| 3 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | 55606 | - | - | - |
| 4 | FRONT DOOR OPENING TRIM WEATHERSTRIP LH | 62312B | - | - | - |
| 5 | NO. 1 INSTRUMENT SIDE PANEL | 55317E | See step 5 | - | - |
| 6 | HOOD LOCK CONTROL LEVER SUB-ASSEMBLY | 53601 | - | - | - |
| 7 | LOWER INSTRUMENT FINISH PANEL SUB-ASSEMBLY | - | - | - | - |
| 8 | INTEGRATION CONTROL AND PANEL ASSEMBLY | 84010D | - | - | - |
| *1 | SWITCH HOLE BASE | - | - |
