Removal [11/2021 - ]: Procedure

  1. REMOVE DOOR SCUFF PLATE ASSEMBLY RH
    1. Use the same procedure as for the LH side.

      Refer to PROCEDURE - Step 13

  2. REMOVE COWL SIDE TRIM BOARD RH
    1. Use the same procedure as for the LH side.

      Refer to PROCEDURE - Step 15

  3. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 24

  4. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    Refer to PROCEDURE - Step 25

  5. REMOVE NO. 2 INSTRUMENT SIDE PANEL
    Refer to PROCEDURE - Step 26
  6. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL
    Refer to PROCEDURE - Step 2 [11/2021 - 03/2022] , or refer to PROCEDURE - Step 2 [03/2022 - 03/2024] , or refer to PROCEDURE - Step 2 [03/2024 - ]
  7. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 27

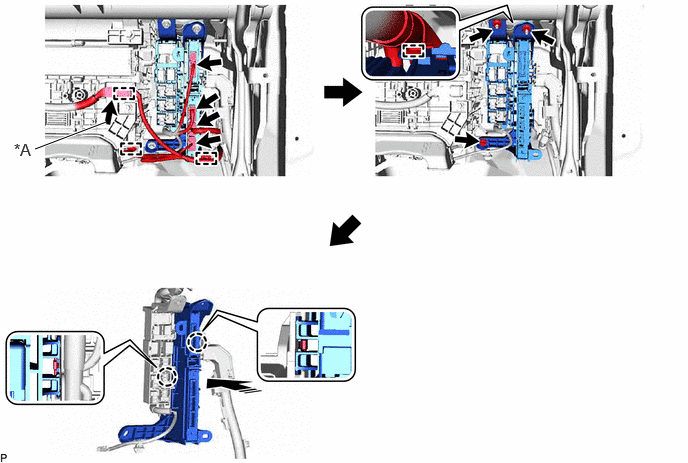

  8. REMOVE ECU INTEGRATION BOX RH
    1. GTY1073396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ PTC Heater - -
      Remove in this Direction - -

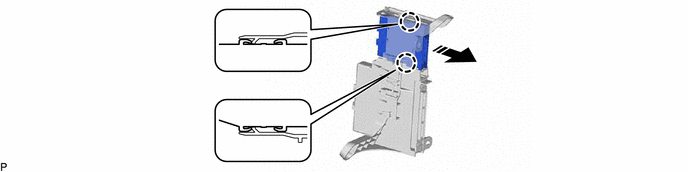

  9. REMOVE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)
    1. GTY1070122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
