Removal [12/2021 - ]: Procedure

REMOVE REAR SEAT CONSOLE BOX LOWER PANEL (for 4-Passenger)
Refer to REMOVAL [12/2021 - ]
REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

Refer to PROCEDURE - Step 1

REMOVE BOX BOTTOM MAT

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE UPPER CONSOLE PANEL ASSEMBLY

HINT:

The illustrations are representative examples, and details may differ.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction (1)

Remove in this Direction (2)

Apply protective tape at the position shown in the illustration.
Using moulding remover B, detach the claw as shown in the illustration.
Using moulding remover B, detach the claw and remove the upper console panel assembly as shown in the illustration.
Disconnect the 2 connector and detach the clamp.

REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place Hands Here		Remove in this Direction (1)
	Remove in this Direction (2)	-	-

REMOVE FRONT CONSOLE BOX INSERT SUB-ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

REMOVE LOWER NO. 2 INSTRUMENT PANEL PAD SUB-ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

REMOVE LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY
1. Use the same procedure described for the lower No. 2 instrument panel pad subassembly.

REMOVE SHIFTING HOLE BEZEL

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

REMOVE CONSOLE REAR END PANEL SUB-ASSEMBLY

HINT:

The illustrations are representative examples, and details may differ.

except 4-Passenger:

	Place Hands Here		Remove in this Direction (1)
	Remove in this Direction (2)		Remove in this Direction (3)

Insert moulding remover B in the position shown in the illustration.
Place your hand in the gap as shown in the illustration, detach the claw.
Insert moulding remover B in the position shown in the illustration.
Place your hand in the gap as shown in the illustration, detach the claw.
Place your hand as shown in the illustration, detach the claw and guide and remove the console rear end panel sub-assembly.
Disconnect the 2 connectors and detach the clamp.
Using a thin-bladed screwdriver, detach the claw and remove the connector cover.
HINT:

Tape the thin-bladed screwdriver tip before use.

for 4-Passenger:

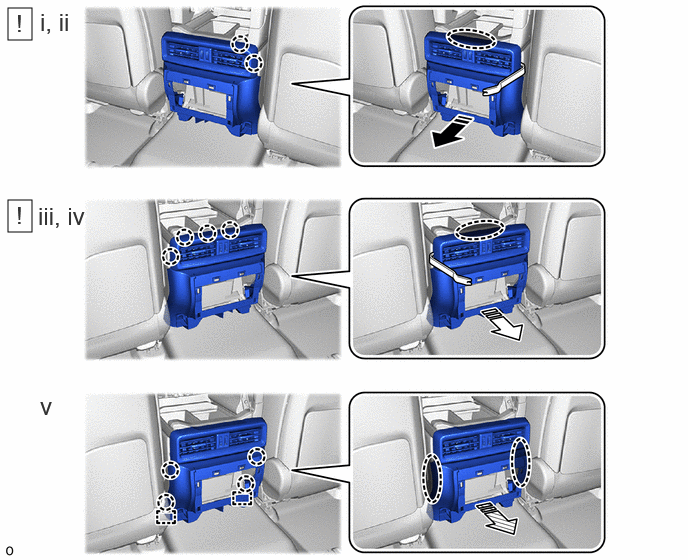

	Place Hands Here		Remove in this Direction (1)
	Remove in this Direction (2)		Remove in this Direction (3)

Insert moulding remover B in the position shown in the illustration.
Place your hand in the gap as shown in the illustration, detach the claw.
Insert moulding remover B in the position shown in the illustration.
Place your hand in the gap as shown in the illustration, detach the claw.
Place your hand as shown in the illustration, detach the claw and guide remove the console rear end panel sub-assembly.

REMOVE REAR CONSOLE BOX SUB-ASSEMBLY

Remove in this Direction
