Meter / Gauge System
>>
DTC B1512-87: Lost Communication with Steering Switch Control Module Missing Message [12/2021 - ]
>>

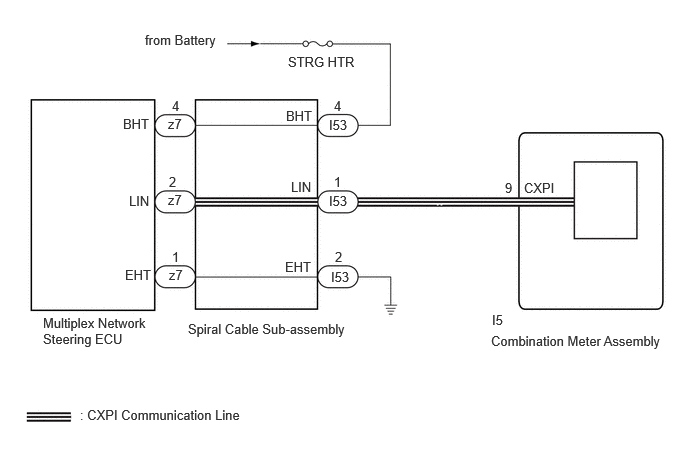

Wiring Diagram
DTC B1512-87: Lost Communication with Steering Switch Control Module Missing Message [12/2021 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
