DTC B1507-18: Turn Signal Light Circuit Current Below Threshold [12/2021 - ]: Wiring Diagram

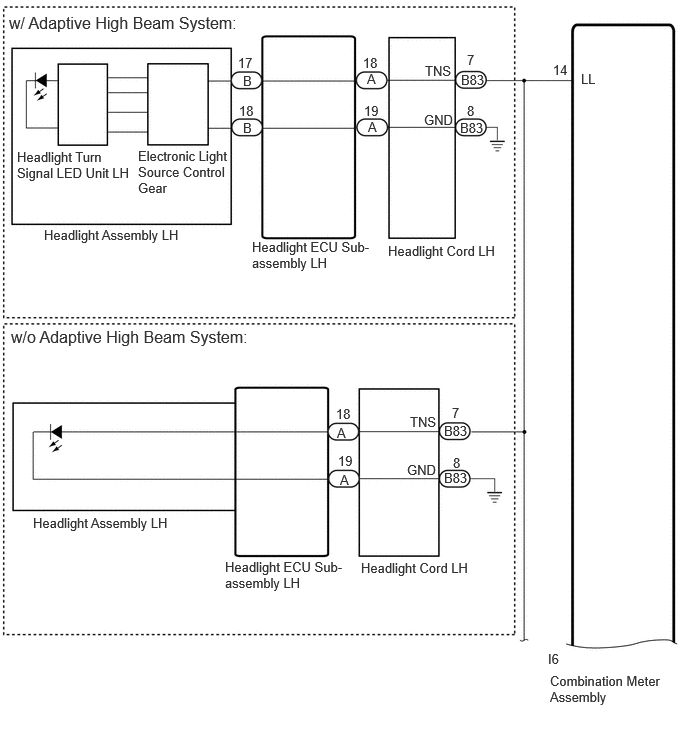

GTY1058815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

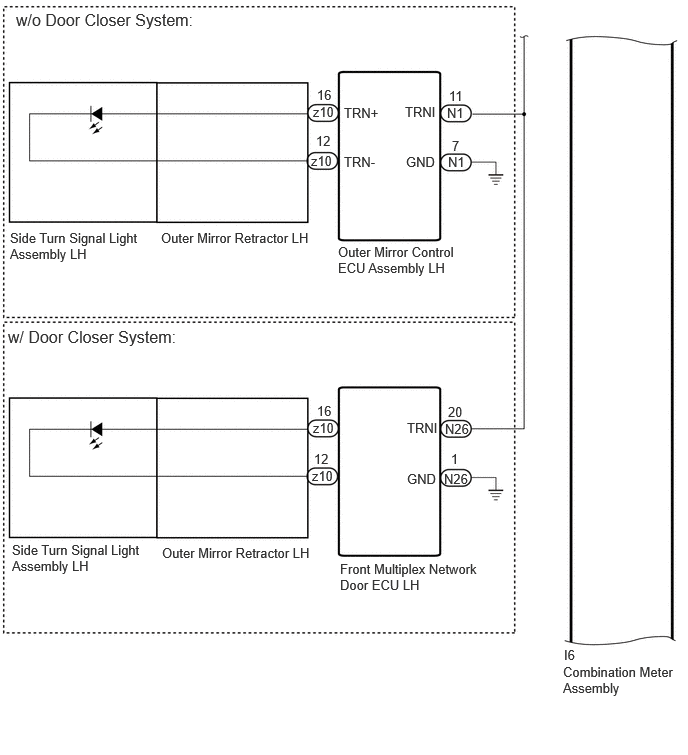

GTY1059208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

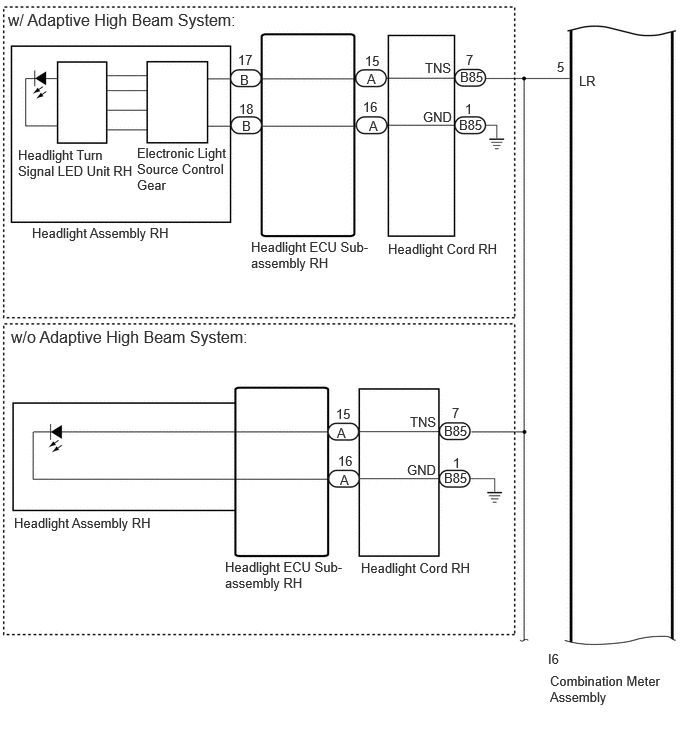

GTY1059141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

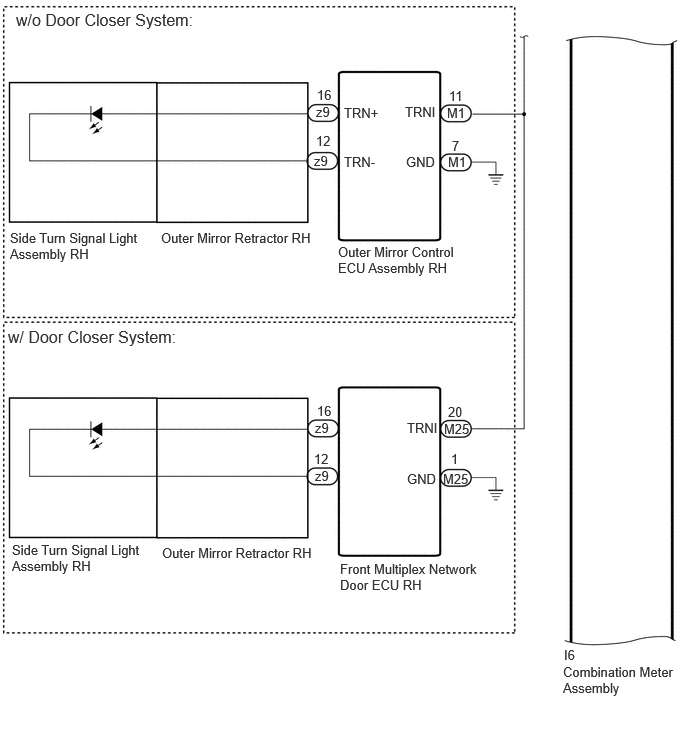

GTY1059447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

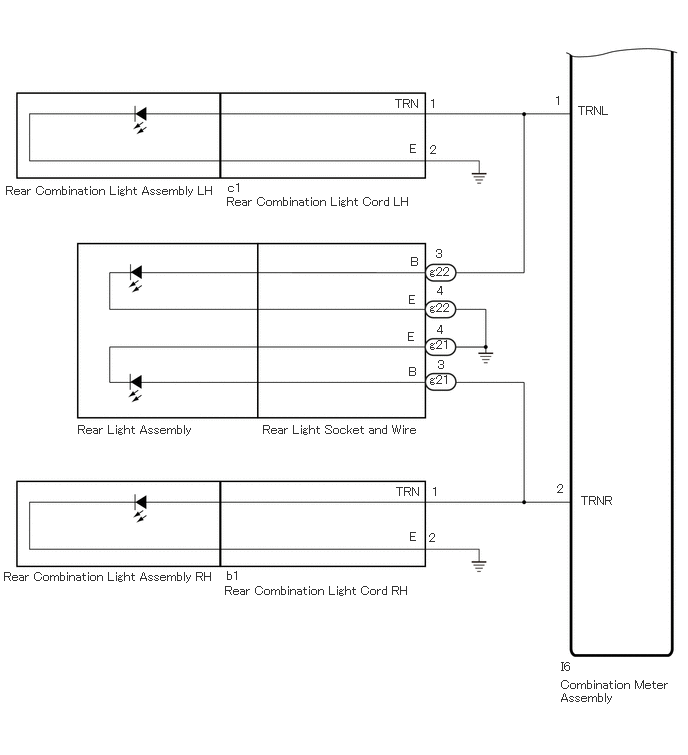

GTY1058951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
