Caution / Notice / Hint
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during combination meter assembly removal/installation are shown below.
NECESSARY PROCEDURE AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
| Combination meter assembly | Software update | - | Refer to REGISTRATION [12/2021 - ] |

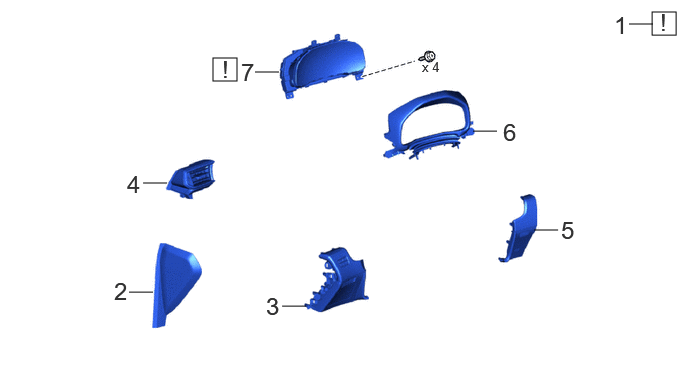

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM | - | See step 1 | - | - |
| 2 | NO. 2 INSTRUMENT SIDE PANEL | 55318F | - | - | - |
| 3 | LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL | 55432D | - | - | - |
| 4 | NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY | 55650 | - | - | - |
| 5 | LOWER INSTRUMENT PANEL | 55312 | - | - | - |
| 6 | INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY | 55404D | - | - | - |
| 7 | COMBINATION METER ASSEMBLY | 83100 | See step 7 | - | - |
