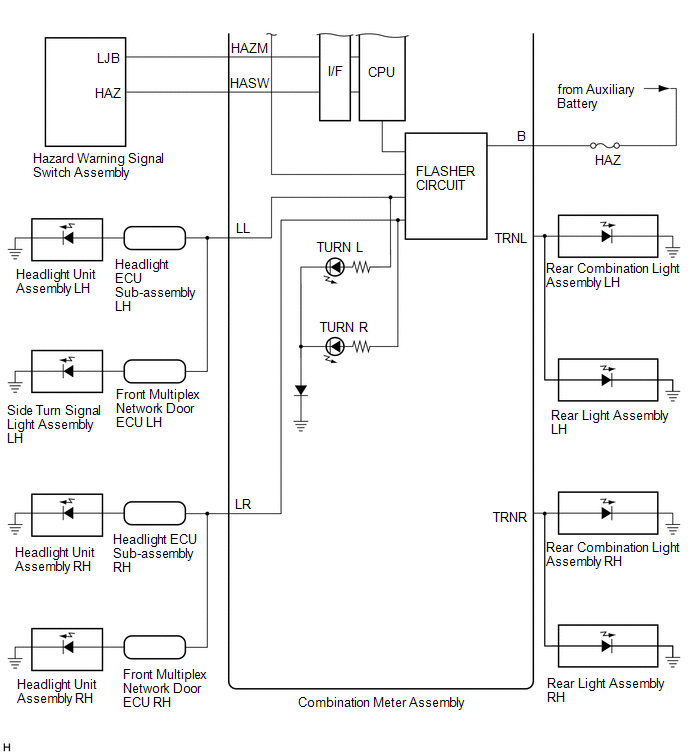

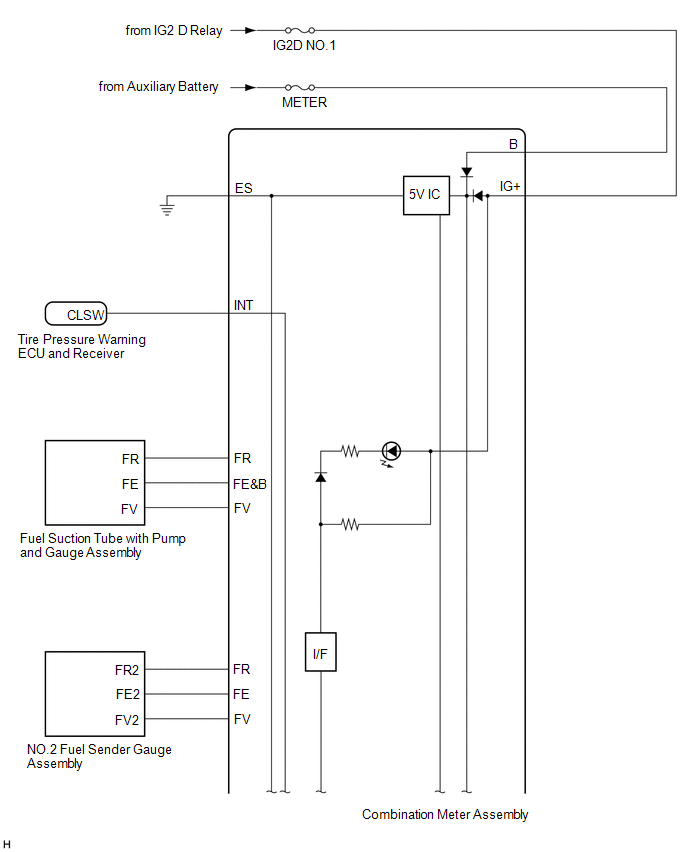

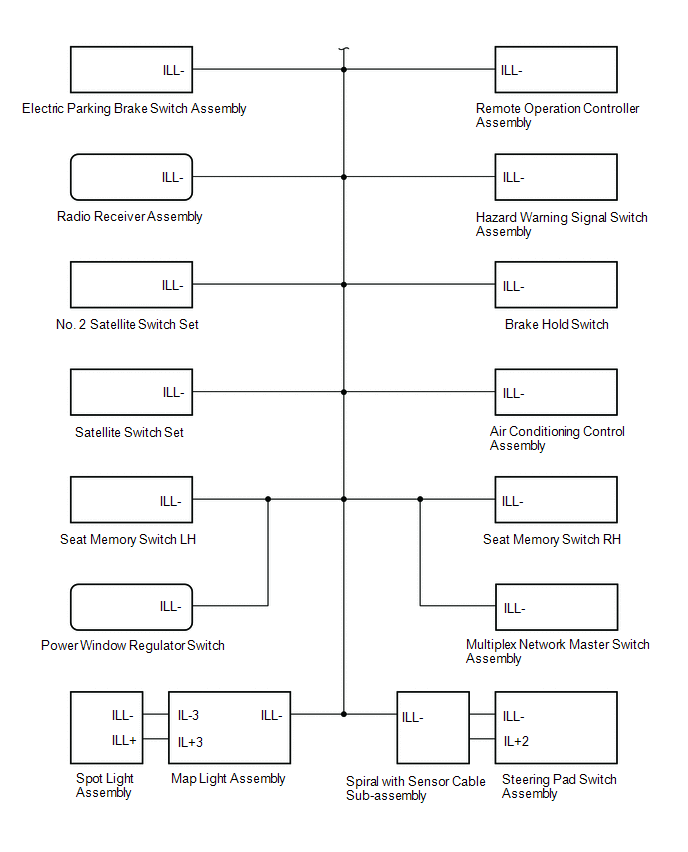

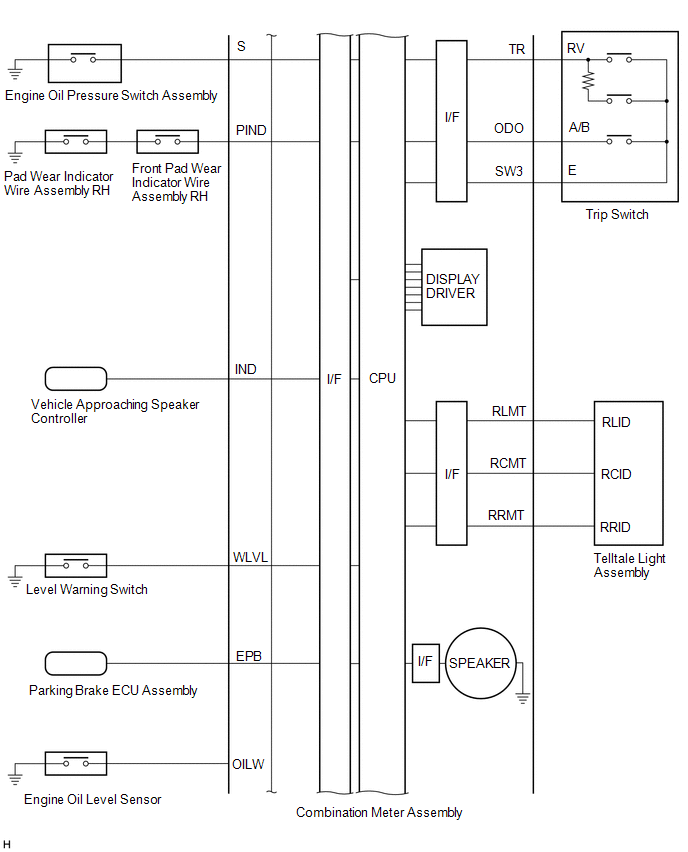

System Diagram [10/2017 - 09/2019]

HINT:

Inspect the communication function by CAN communication system.

Refer to HOW TO PROCEED WITH TROUBLESHOOTING [10/2017 - 09/2018] , or refer to HOW TO PROCEED WITH TROUBLESHOOTING [09/2018 - 10/2020]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

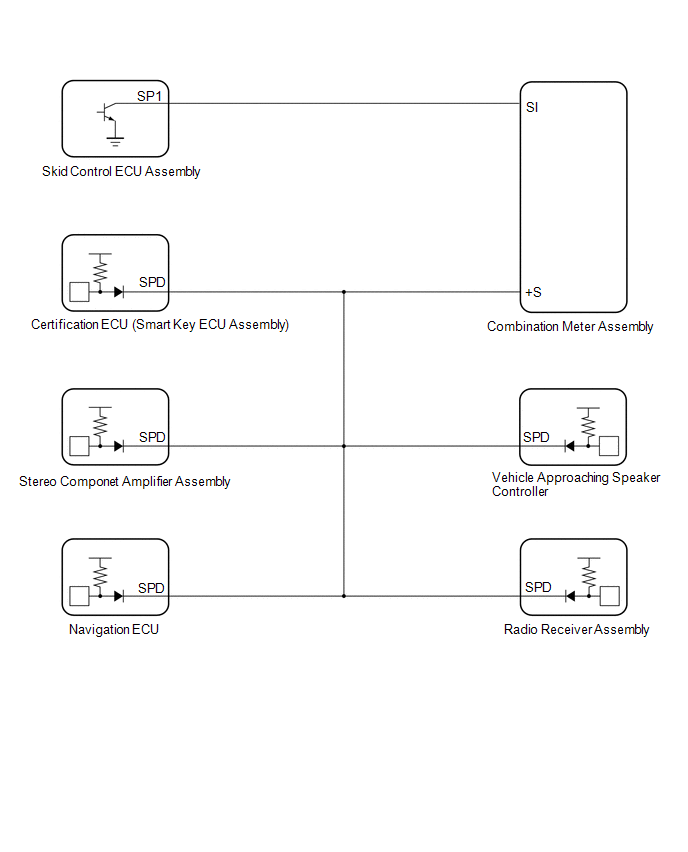

Speed Signal Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
