Removal [12/2023 - ]: Procedure

  1. REMOVE REAR WHEEL

    Refer to REMOVAL [12/2023 - ]

  2. REMOVE REAR STABILIZER LINK ASSEMBLY LH

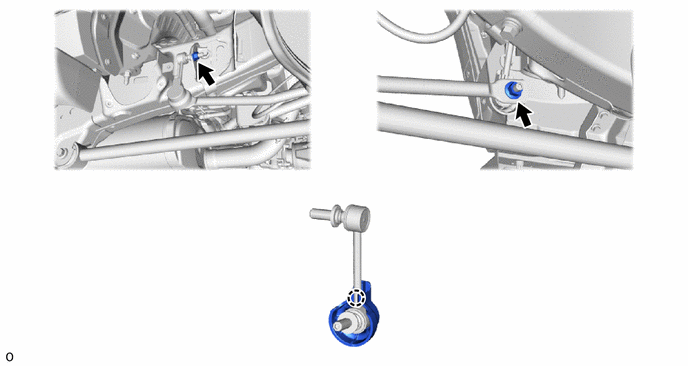

    1. GTY1215617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REAR STABILIZER LINK ASSEMBLY RH
    1. Use the same procedure described for the LH side.
  4. REMOVE REAR STABILIZER END BRACKET LH

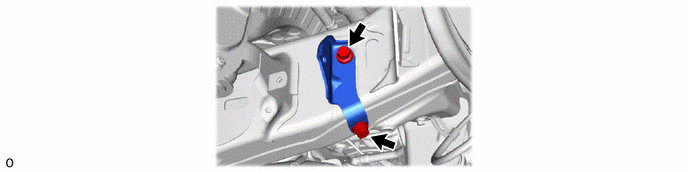

    1. GTY1215616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE REAR STABILIZER END BRACKET RH
    1. Use the same procedure described for the LH side.
  6. REMOVE REAR STABILIZER BAR

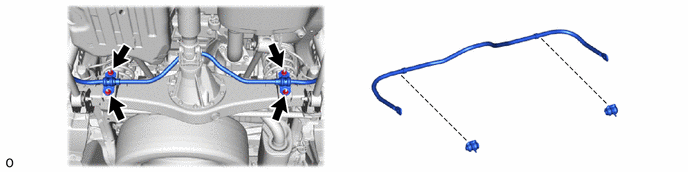

    1. GTY1215614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
