The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the rear stabilizer bar removal/installation are shown below.
Necessary Procedure After Parts Removed/Installed/Replaced
| Replaced Part or Performed Procedure | Necessary Procedures | Effect/Inoperative Function when Necessary Procedures are not Performed | Link |
|---|---|---|---|
| Suspension parts | Parking assist ECU initialization |
|
Refer to BEFORE STARTING ADJUSTMENT [12/2023 - ] |
COMPONENTS (REMOVAL)

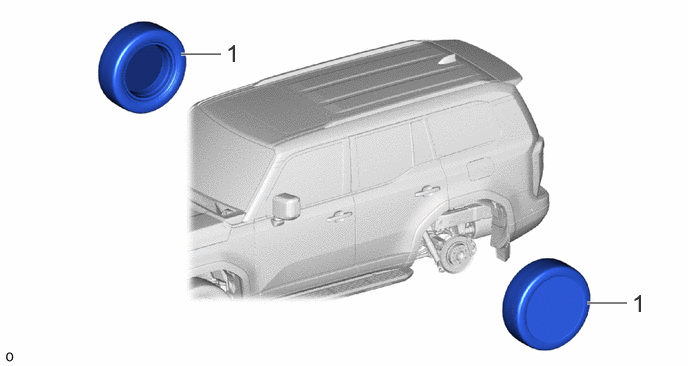

Fig 1: Rear Stabilizer Bar (W/O Electronic-Kinetic Dynamic Suspension System) Removal Components (1 Of 2)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | REAR WHEEL | - | - | - | - |
Fig 2: Rear Stabilizer Bar (W/O Electronic-Kinetic Dynamic Suspension System) Removal Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 2 | REAR STABILIZER LINK ASSEMBLY LH | 48840A | - | - | - |
| 3 | REAR STABILIZER LINK ASSEMBLY RH | 48830D | - | - | - |
| 4 | REAR STABILIZER END BRACKET LH | 48837R | - | - | - |
| 5 | REAR STABILIZER END BRACKET RH | 48836R | - | - | - |
| 6 | REAR STABILIZER BAR | 48812 | - | - | - |
| *1 | REAR STABILIZER BUSH | *2 | REAR STABILIZER BAR BRACKET LH |
| *3 | REAR STABILIZER BAR BRACKET RH | *4 | LOWER BALL JOINT DUST COVER PROTECTOR |
| • | Non-reusable part | - | - |
