COMPONENTS (INSTALLATION)
Fig 1: Rear Stabilizer Bar (W/O Electronic-Kinetic Dynamic Suspension System) Installation Components With Torque Specifications (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | REAR STABILIZER BAR | 48812 | See step 1 | - | - |
| 2 | REAR STABILIZER END BRACKET LH | 48837R | - | - | - |
| 3 | REAR STABILIZER END BRACKET RH | 48836R | - | - | - |
| 4 | REAR STABILIZER LINK ASSEMBLY LH | 48840A | - | - | - |
| 5 | REAR STABILIZER LINK ASSEMBLY RH | 48830D | - | - | - |
| *1 | REAR STABILIZER BUSH | *2 | REAR STABILIZER BAR BRACKET LH |
| *3 | REAR STABILIZER BAR BRACKET RH | *4 | LOWER BALL JOINT DUST COVER PROTECTOR |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part |

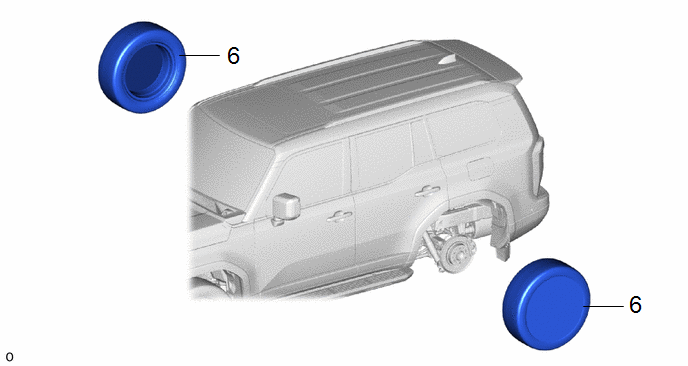

Fig 2: Rear Stabilizer Bar (W/O Electronic-Kinetic Dynamic Suspension System) Installation Components (2 Of 2)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 6 | REAR WHEEL | - | - | - | - |
