Disassembly [12/2023 - ]: Procedure

  1. PRECAUTION
    NOTE:

    When removing parts with double-sided tape applied, heat the portion of the parts with tape residue with a heat light if the double-sided tape is difficult to remove.

    Standard Value

    Part Temperature
    Metal parts 40 to 60°C (104 to 140°F)
    Resin parts 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY749838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the part excessively.

  2. REMOVE KICK DOOR CONTROL SENSOR ASSEMBLY (w/ Hands Free Power Back Door)

    Refer to PROCEDURE - Step 2

  3. REMOVE NO. 2 BLE DOOR DIGITAL KEY RECEIVER ASSEMBLY (w/ Digital Key System)

    Refer to PROCEDURE - Step 4

  4. REMOVE REAR CENTER ULTRASONIC SENSOR

    Refer to PROCEDURE - Step 2

  5. REMOVE REAR CORNER ULTRASONIC SENSOR

    Refer to PROCEDURE - Step 3

  6. REMOVE REAR CENTER ULTRASONIC SENSOR RETAINER
    Refer to PROCEDURE - Step 4
  7. REMOVE REAR CORNER ULTRASONIC SENSOR RETAINER
    Refer to PROCEDURE - Step 5

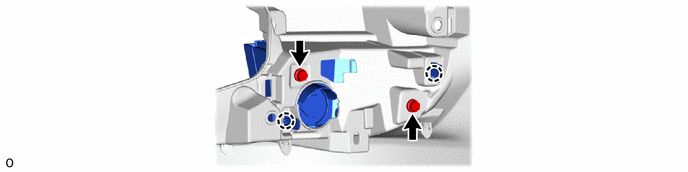

  8. REMOVE REFLEX REFLECTOR ASSEMBLY LH
    1. GTY1218223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE REFLEX REFLECTOR ASSEMBLY RH
    1. Use the same procedure described for the LH side.
  10. REMOVE REAR BUMPER WIRE
    1. GTY1211279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

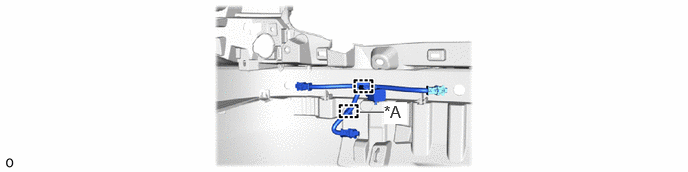

  11. REMOVE NO. 2 LUGGAGE ROOM WIRE

    HINT:

    The illustration is an example, so the details may differ.

    1. GTY1215220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Hands Free Power Back Door - -

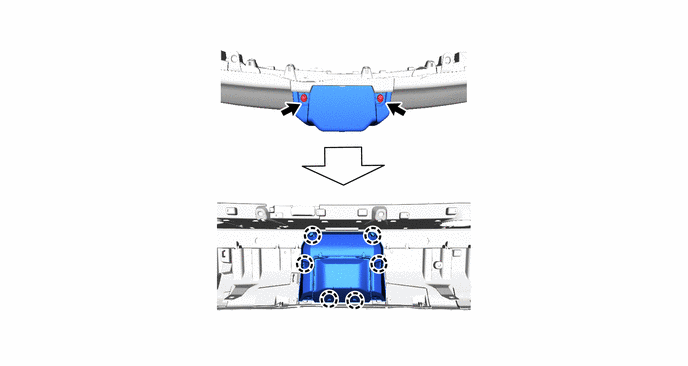

  12. REMOVE REAR BUMPER CENTER SUB-ASSEMBLY

    HINT:

    The illustration is an example, so the details may differ.

    1. GTY1212715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

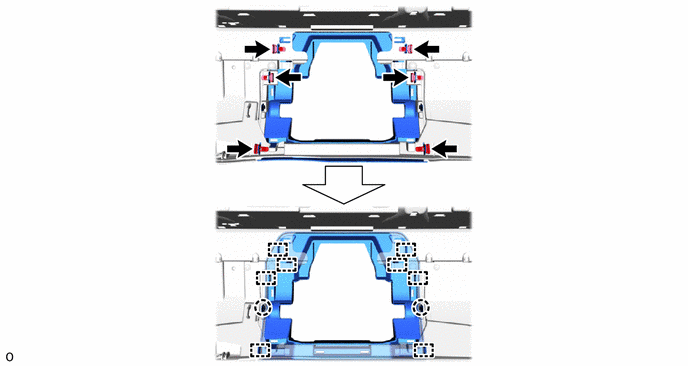

  13. REMOVE REAR NO. 2 STEP COVER

    HINT:

    The illustration is an example, so the details may differ.

    1. GTY1211382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

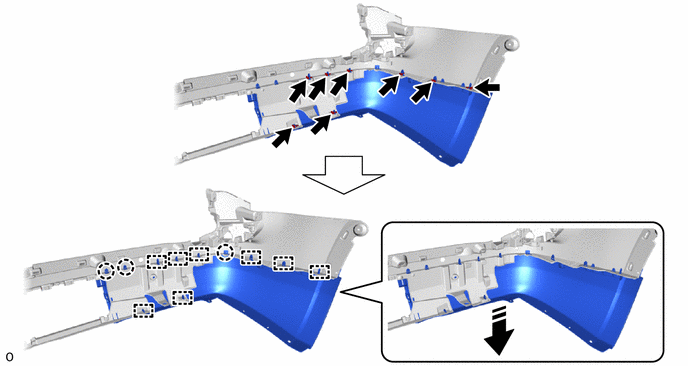

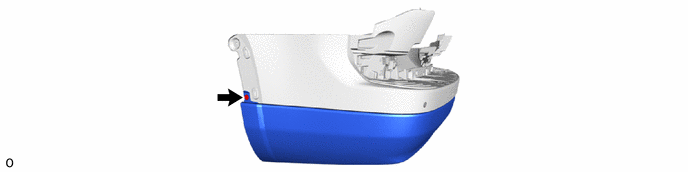

  14. REMOVE REAR BUMPER SIDE EXTENSION LH (for Standard)
    1. GTY1211383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. GTY1216340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  15. REMOVE REAR BUMPER SIDE EXTENSION RH (for Standard)
    1. Use the same procedure described for the LH side.
  16. REMOVE REAR BUMPER EXTENSION SUB-ASSEMBLY LH (for Off Road Package)
    1. GTY1211384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. GTY1212867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  17. REMOVE REAR BUMPER EXTENSION SUB-ASSEMBLY RH (for Off Road Package)
    1. Use the same procedure described for the LH side.
  18. REMOVE REAR BUMPER NO. 2 CORNER EXTENSION LH (for Off Road Package)
    1. GTY1211259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE REAR BUMPER NO. 2 CORNER EXTENSION RH (for Off Road Package)
    1. Use the same procedure described for the LH side.
  20. REMOVE REAR BUMPER EXTENSION LH (for Off Road Package)
    1. GTY1211260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE REAR BUMPER EXTENSION RH (for Off Road Package)
    1. Use the same procedure described for the LH side.

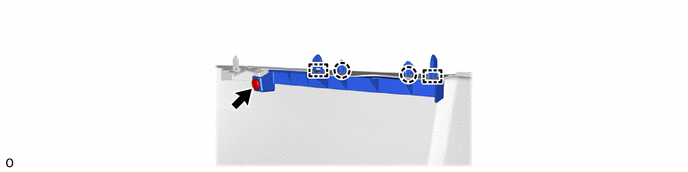

  22. REMOVE REAR BUMPER SIDE MOUNTING BRACKET LH
    1. GTY1211261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE REAR BUMPER SIDE MOUNTING BRACKET RH
    1. Use the same procedure described for the LH side.
  24. REMOVE MOULDING TAPE
    1. GTY1214094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Heat the adhesive of the moulding tape using a heat light.
      2. Remove the moulding tape.
    2. Use the same procedure for the other side.
  25. REMOVE REAR BUMPER CENTER PAD
    1. GTY1213980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Heat the adhesive of the rear bumper center pad using a heat light.
      2. Remove the rear bumper center pad.

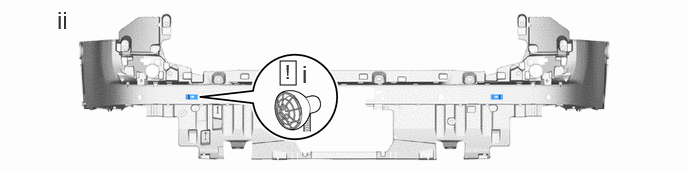

  26. REMOVE REAR ULTRASONIC SENSOR CLIP
    1. GTY1216871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Heat the adhesive of the rear ultrasonic sensor clip using a heat light.
      2. Remove the 2 rear ultrasonic sensor clips.
  27. REMOVE BACK STEP PLATE LH
    1. GTY1211264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE BACK STEP PLATE RH
    1. Use the same procedure described for the LH side.
  29. REMOVE REAR BUMPER PLATE RH
    1. GTY1211265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

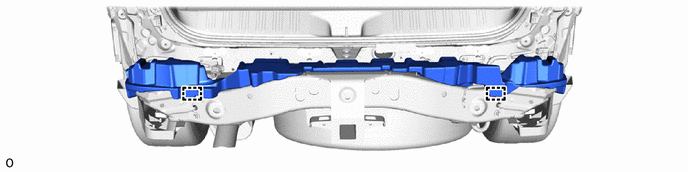

  30. REMOVE REAR BUMPER ENERGY ABSORBER
    1. GTY1218203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

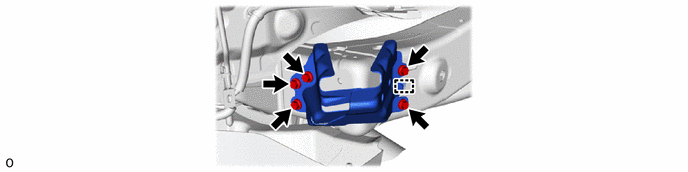

  31. REMOVE REAR BUMPER SIDE MOUNTING BRACKET ASSEMBLY LH
    1. GTY1211286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE REAR BUMPER SIDE MOUNTING BRACKET ASSEMBLY RH
    1. Use the same procedure described for the LH side.

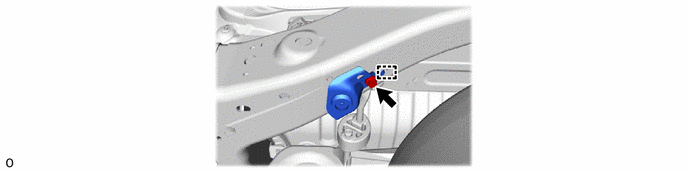

  33. REMOVE REAR BUMPER BAR REINFORCEMENT LH
    1. GTY1211266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE REAR BUMPER BAR REINFORCEMENT RH
    1. Use the same procedure described for the LH side.

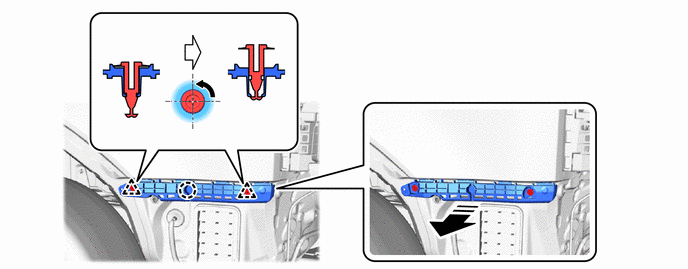

  35. REMOVE REAR BUMPER SIDE SUPPORT LH
    1. GTY1214370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction Rotation Direction
  36. REMOVE REAR BUMPER SIDE SUPPORT RH
    1. Use the same procedure described for the LH side.
  37. REMOVE NO. 2 LUGGAGE COMPARTMENT SIDE COVER PROTECTOR

    HINT:

    The illustration is an example, so the details may differ.

    1. GTY1211288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. REMOVE NO. 1 LUGGAGE COMPARTMENT SIDE COVER PROTECTOR
    1. Use the same procedure described for the No. 2 luggage compartment side cover protector.
