Removal [12/2023 - ]: Procedure

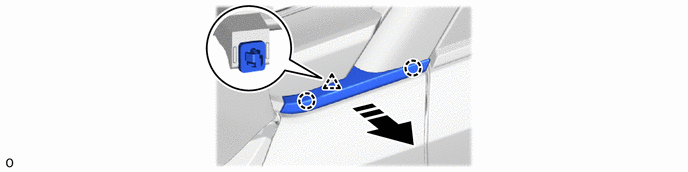

  1. REMOVE FRONT FENDER TO COWL SIDE SEAL LH
    1. GTY1215300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  2. REMOVE FRONT FENDER NO. 2 TO COWL SIDE SEAL LH
    1. GTY1215131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  3. REMOVE LOWER WINDSHIELD MOULDING OUTSIDE LH
    1. GTY1213040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Put protective tape around the windshield outside moulding LH.
      2. Detach the claw and remove the windshield outside moulding LH as shown in the illustration.

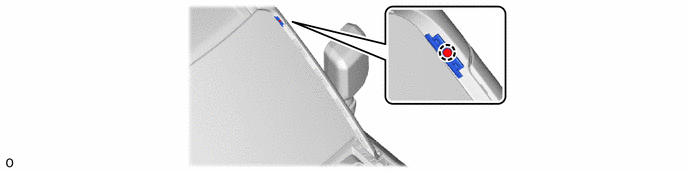

  4. REMOVE NO. 1 WINDSHIELD OUTSIDE MOULDING FASTENER
    1. GTY1213308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

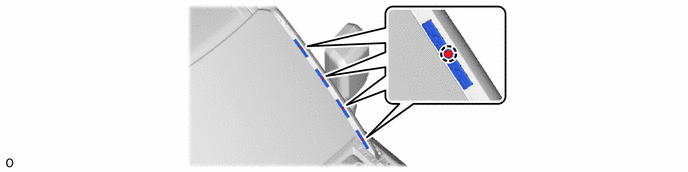

  5. REMOVE NO. 1 WINDSHIELD OUTSIDE MOULDING CLIP
    1. GTY1218620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
