Caution / Notice / Hint
HINT:
- Use the same procedure for the RH and LH sides.
- The procedure listed below is for the LH side.

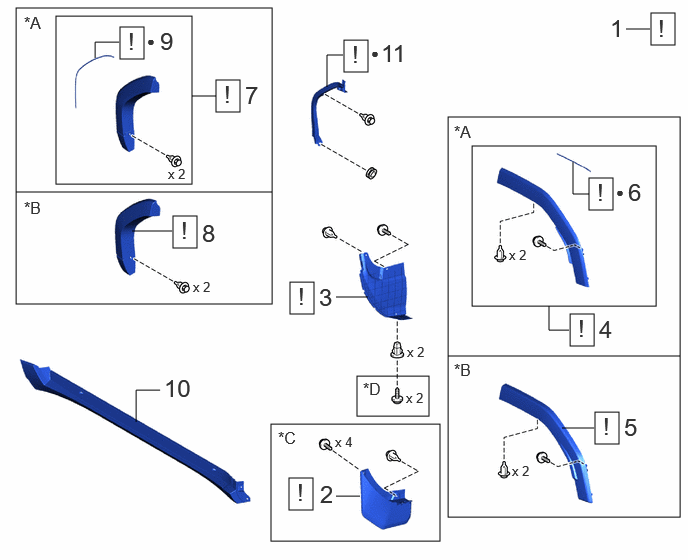

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | PRECAUTION | - | See step 1 | - | - |
| 2 | REAR QUARTER PANEL MUDGUARD LH | 76626D | See step 2 | - | - |
| 3 | REAR BUMPER SIDE SEAL LH | 52592 | See step 3 | - | - |
| 4 | QUARTER OUTSIDE MOULDING SUB-ASSEMBLY LH | 75606A | See step 4 | - | - |
| 5 | QUARTER OUTSIDE MOULDING SUB-ASSEMBLY LH | 75606A | See step 5 | - | - |
| 6 | NO. 1 BODY OUTSIDE MOULDING PAD | 75696 | See step 6 | - | - |
| 7 | REAR DOOR MOULDING OUTSIDE LH | 75742 | See step 7 | - | - |
| 8 | REAR DOOR MOULDING OUTSIDE LH | 75742 | See step 8 | - | - |
| 9 | REAR DOOR NO. 1 MOULDING PAD | 75767A | See step 9 | - | - |
| 10 | BODY ROCKER PANEL MOULDING ASSEMBLY LH | 75860A | - | - | - |
| 11 | QUARTER PANEL WHEEL OPENING MOULDING LH | 75874 | See step 11 | - | - |
| *A | for Standard | *B | for Off Road Package |
| *C | w/ Mudguard | *D | w/o Mudguard |
| • | Non-reusable part | - | - |
