  1. REMOVE FRONT FENDER MOULDING SUB-ASSEMBLY LH (for Standard)
    NOTE:

    When removing the front fender moulding sub-assembly LH, if the double-sided tape is difficult to remove, heat the adhesive of the front fender moulding sub-assembly LH using a heat light.

    Standard Value

    Part Temperature
    Front Fender Moulding Sub-assembly LH 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY749838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the front fender moulding sub-assembly LH excessively.

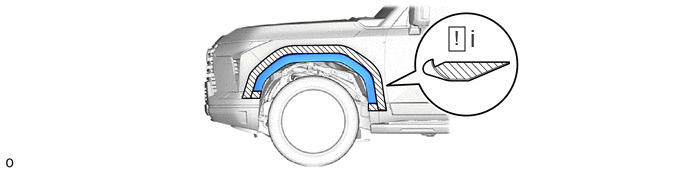

    1. GTY1216198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Put protective tape around the front fender moulding sub-assembly LH.
    2. GTY1219590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Clip Screw
      1. Remove the 5 clips.
      2. Using a 4 mm hexagon socket wrench, remove the screw.

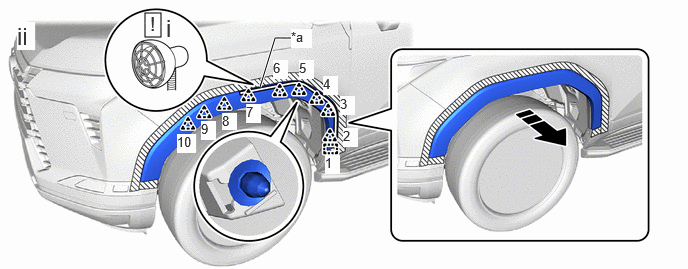

    3. GTY1218355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Double-sided Tape - -
      Remove in this Direction - -
      1. Heat the adhesive of the front fender moulding sub-assembly LH using a heat light.
      2. Using moulding remover B, detach the guide and clip in the order shown in the illustration.
    4. GTY1212944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Fold back the front fender liner LH and detach the claw and remove the front fender moulding sub-assembly LH.
  2. REMOVE FRONT FENDER MOULDING SUB-ASSEMBLY LH (for Off Road Package)

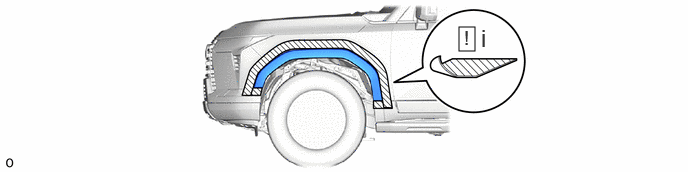

    1. GTY1215315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Put protective tape around the front fender moulding sub-assembly LH.

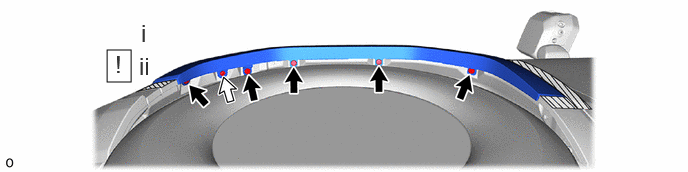

    2. GTY1218494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Clip Screw
      1. Remove the 5 clips.
      2. Using a 4 mm hexagon socket wrench, remove the screw.

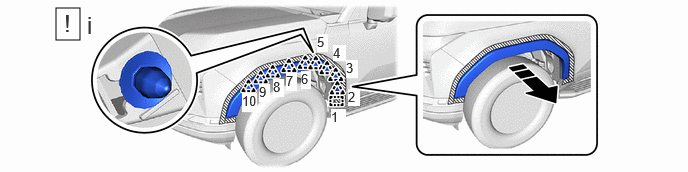

    3. GTY1216428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Using moulding remover B, detach the guide and clip in the order shown in the illustration.
    4. GTY1211007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Fold back the front fender liner LH and detach the claw and remove the front fender moulding sub-assembly LH.
  3. REMOVE FRONT FENDER ORNAMENT PAD (for Standard)
    NOTE:

    When removing the front fender ornament pad, if the double-sided tape is difficult to remove, heat the adhesive of the front fender ornament pad using a heat light.

    Standard Value

    Part Temperature
    Front Fender Ornament Pad 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY749838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the front fender ornament pad excessively.

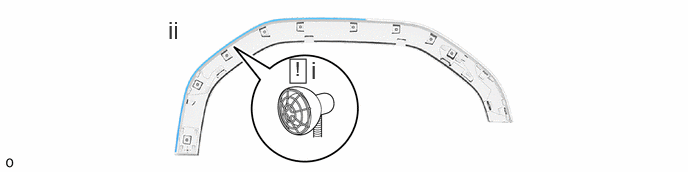

    1. GTY1219007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Heat the adhesive of the front fender ornament pad using a heat light.
      2. Remove the front fender ornament pad.
  4. REMOVE FRONT FENDER MUDGUARD LH (w/ Mudguard)
    Refer to PROCEDURE - Step 1
  5. REMOVE FRONT FENDER NO. 2 MOULDING OUTSIDE LH
    1. w/o Mudguard:
      GTY1218859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw Clip
      1. Using a 4 mm hexagon socket wrench, remove the 2 screws.
      2. Remove the clip.
    2. GTY1211493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Put protective tape around the front fender No. 2 moulding outside LH.
      2. Detach the clip and remove the front fender No. 2 moulding outside LH as shown in the illustration.
