HINT:
- Use the same procedure for the RH and LH sides.
- The procedure described below is for the LH side.

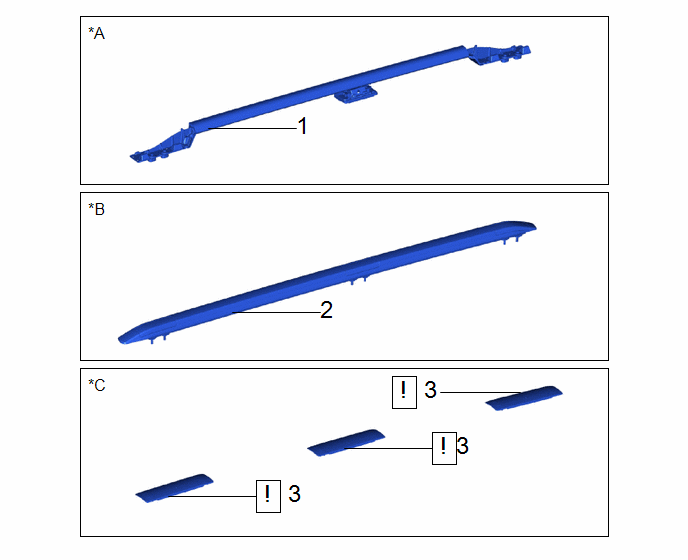

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | ROOF RACK ASSEMBLY LH | 63470A | - | - | - |
| 2 | ROOF SIDE RAIL GARNISH SUB-ASSEMBLY LH | 62404 | - | - | - |
| 3 | ROOF DRIP SIDE FINISH MOULDING JOINT COVER LH | 75597 | See step 3 | - | - |
| *A | for Type A | *B | for Type B |
| *C | for Type C | - | - |

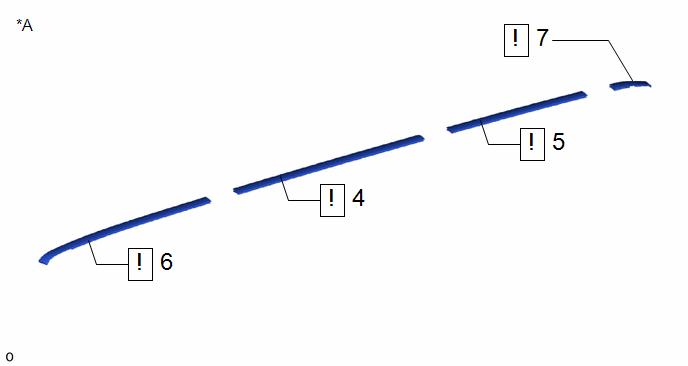

| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 4 | CENTER ROOF DRIP SIDE FINISH MOULDING LH | 75556D | See step 4 | - | - |
| 5 | CENTER NO. 2 ROOF DRIP SIDE FINISH MOULDING LH | 75558C | See step 5 | - | - |
| 6 | ROOF DRIP SIDE FINISH MOULDING LH | 75552E | See step 6 | - | - |
| 7 | REAR ROOF DRIP SIDE FINISH MOULDING LH | 75554A | See step 7 | - | - |
| *A | for Type A, Type C | - | - |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 6 | ROOF DRIP SIDE FINISH MOULDING LH | 75552E | See step 6 | - | - |
| 7 | REAR ROOF DRIP SIDE FINISH MOULDING LH | 75554A | See step 7 | - | - |
| *A | for Type B | - | - |
