Reassembly [12/2023 - ]: Procedure

  1. INSTALL FRONT FENDER PANEL LH

    Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

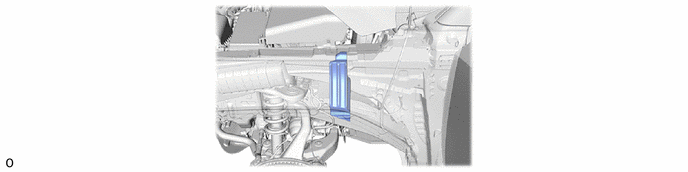

  2. INSTALL FRONT SIDE NO. 2 AIR GUIDE
    1. GTY1213212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL FRONT FENDER SIDE PANEL PROTECTOR LH
  4. INSTALL FRONT FENDER LINER LH
  5. INSTALL BODY ROCKER PANEL MOULDING ASSEMBLY LH
  6. INSTALL FRONT FENDER NO. 2 TO COWL SIDE SEAL LH
  7. INSTALL FRONT FENDER TO COWL SIDE SEAL LH
  8. INSTALL FRONT FENDER TOP REINFORCEMENT SUB-ASSEMBLY LH
  9. INSTALL WHEEL ASSEMBLY

    Refer to INSTALLATION [12/2023 - ]

  10. INSTALL HEADLIGHT ASSEMBLY LH

    Refer to INSTALLATION [12/2023 - ]

  11. ADJUST FRONT DOOR PANEL SUB-ASSEMBLY LH

    Refer to ADJUSTMENT [12/2023 - ]

  12. ADJUST HOOD SUB-ASSEMBLY

    Refer to ADJUSTMENT [12/2023 - ]
