Caution / Notice / Hint
HINT:
- Use the same procedure for the RH and LH sides.
- The procedure listed below is for the LH side.

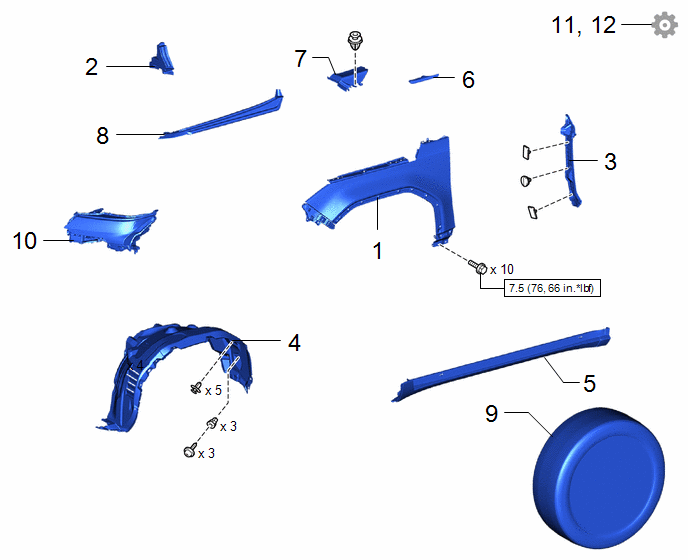

COMPONENTS (REASSEMBLY)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | FRONT FENDER PANEL LH | 53812D | - | - | - |
| 2 | FRONT SIDE NO. 2 AIR GUIDE | 53154E | - | - | - |
| 3 | FRONT FENDER SIDE PANEL PROTECTOR LH | 53828J | - | - | - |
| 4 | FRONT FENDER LINER LH | 53876A | - | - | - |
| 5 | BODY ROCKER PANEL MOULDING ASSEMBLY LH | 75860A | - | - | - |
| 6 | FRONT FENDER NO. 2 TO COWL SIDE SEAL LH | 53869C | - | - | - |
| 7 | FRONT FENDER TO COWL SIDE SEAL LH | 53867H | - | - | - |
| 8 | FRONT FENDER TOP REINFORCEMENT SUB-ASSEMBLY LH | 53808D | - | - | - |
| 9 | WHEEL ASSEMBLY | - | - | - | - |
| 10 | HEADLIGHT ASSEMBLY LH | - | - | - | - |
| 11 | FRONT DOOR PANEL SUB-ASSEMBLY LH | 67002 | - | - | See step 11 |
| 12 | HOOD SUB-ASSEMBLY | 53301 | - | - | See step 12 |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
