Caution / Notice / Hint

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the front fender sub-assembly LH removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedures	Necessary Procedures	Effect/Inoperative Function when Necessary Procedures are not Performed	Link
Front bumper assembly (Including removal and installation)	Front television camera view adjustment	Panoramic view monitor system Multi-terrain monitor system	Refer to BEFORE STARTING ADJUSTMENT [12/2023 - ]
Front television camera assembly, front bumper assembly or radiator grille Rear television camera assembly Side television camera assembly LH or outer rear view mirror assembly LH Side television camera assembly RH or outer rear view mirror assembly RH	Television camera view adjustment HINT: Replacement or removal and installation of 2 or more parts	Panoramic view monitor system Multi-terrain monitor system	Refer to BEFORE STARTING ADJUSTMENT [12/2023 - ]

HINT:

Use the same procedure for the RH and LH sides.
The procedure described below is for the LH side.

COMPONENTS (DISASSEMBLY)

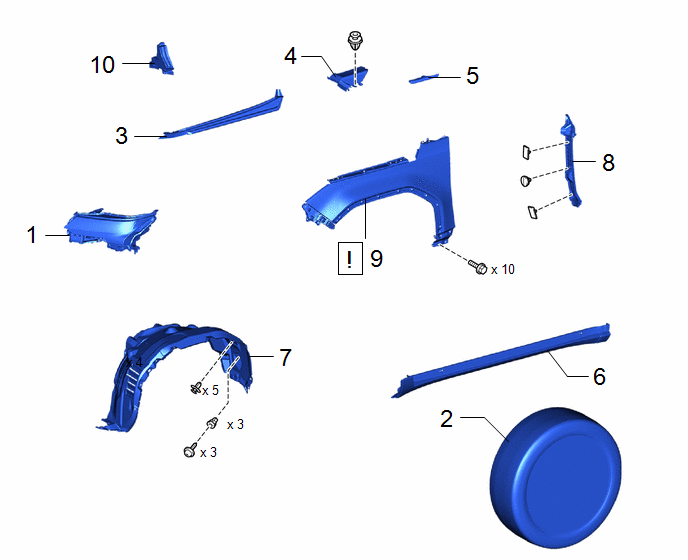

Fig 1: Front Fender Disassembly Components

Procedure		Part Name Code
1	HEADLIGHT ASSEMBLY LH	-	-	-	-
2	WHEEL ASSEMBLY	-	-	-	-
3	FRONT FENDER TOP REINFORCEMENT SUB-ASSEMBLY LH	53808D	-	-	-
4	FRONT FENDER TO COWL SIDE SEAL LH	53867H	-	-	-
5	FRONT FENDER NO. 2 TO COWL SIDE SEAL LH	53869C	-	-	-
6	BODY ROCKER PANEL MOULDING ASSEMBLY LH	75860A	-	-	-
7	FRONT FENDER LINER LH	53876A	-	-	-
8	FRONT FENDER SIDE PANEL PROTECTOR LH	53828J	-	-	-
9	FRONT FENDER PANEL LH	53812D	See step 9	-	-
10	FRONT SIDE NO. 2 AIR GUIDE	53154E	-	-	-
