Caution / Notice / Hint

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the front door window frame moulding LH (center pillar side) removal/installation are shown below.

HINT:

• When the cable is disconnected/reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
  • Learning completes when vehicle is driven

    Effect/Inoperative Function when Necessary Procedures are not Performed	Necessary Procedures	Link
    Lighting system (EXT) Cornering lights	Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.	Refer to INITIALIZATION [12/2023 - ]
    Front camera system

  • Learning completes when vehicle is operated normally

    Effect/Inoperative Function when Necessary Procedures are not Performed	Necessary Procedures	Link
    Power back door system	Fully close the back door by hand. HINT:  Initialization is not necessary if the above procedures are performed while the back door is closed.	Refer to INITIALIZATION [12/2023 - ]
    Air conditioning system	After the ignition switch is turned to ON, the servo motor and expansion valve standard position is recognized.	-

• Use the same procedure for the RH and LH sides.
• The procedure described below is for the LH side.

COMPONENTS (REMOVAL)

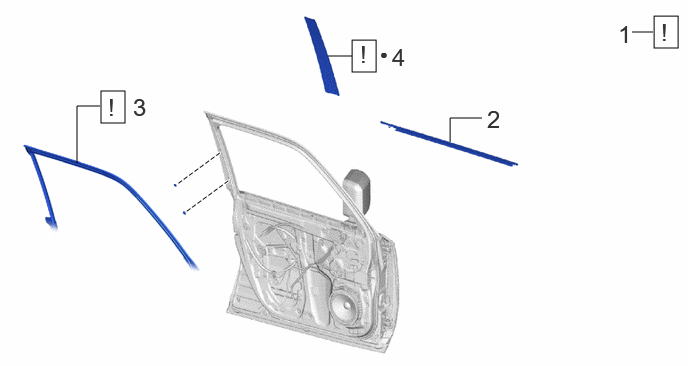

Fig 1: Front Door Window Frame Moulding Removal Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	PRECAUTION	-	See step  1	-	-
2	FRONT DOOR BELT MOULDING LH	75712B	-	-	-
3	FRONT DOOR WEATHERSTRIP LH	67862	See step  3	-	-
4	FRONT DOOR WINDOW FRAME MOULDING LH (CENTER PILLAR SIDE)	75756D	See step  4	-	-
