Removal [12/2023 - ]: Procedure

  1. REMOVE REAR LIGHT ASSEMBLY

    Refer to REMOVAL [12/2023 - ]

  2. REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY
    1. GTY1214504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 2 bolts.

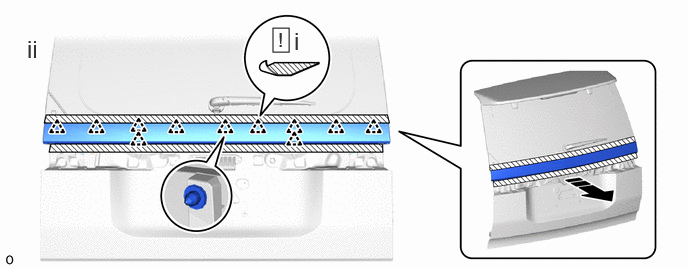

    2. GTY1211202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Put protective tape around the back door outside garnish sub-assembly.
      2. Detach the clip and remove the back door outside garnish sub-assembly as shown in the illustration.
