Caution / Notice / Hint

COMPONENTS (REMOVAL)

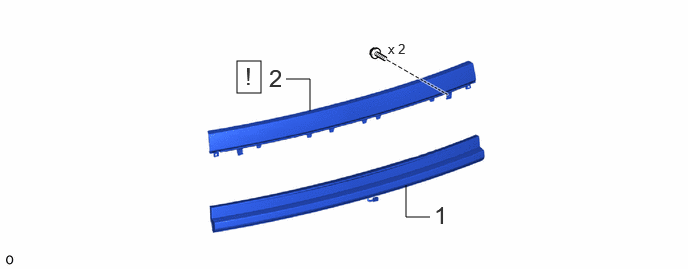

Fig 1: Back Door Outside Garnish Removal Components
GTY1217684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
1 REAR LIGHT ASSEMBLY 81580A - - -
2 BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY 76801D See step  2 - -
