Caution / Notice / Hint

COMPONENTS (REASSEMBLY)

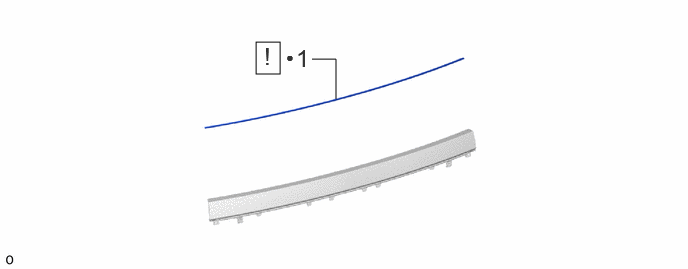

Fig 1: Back Door Outside Garnish Reassembly Components
GTY1215959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
1 BACK DOOR OUTSIDE GARNISH PROTECTOR 76825 See step  1 - -
• Non-reusable part - -
