Caution / Notice / Hint
HINT:
- Use the same procedure for the RH and LH sides.
- The procedure listed below is for the LH side.

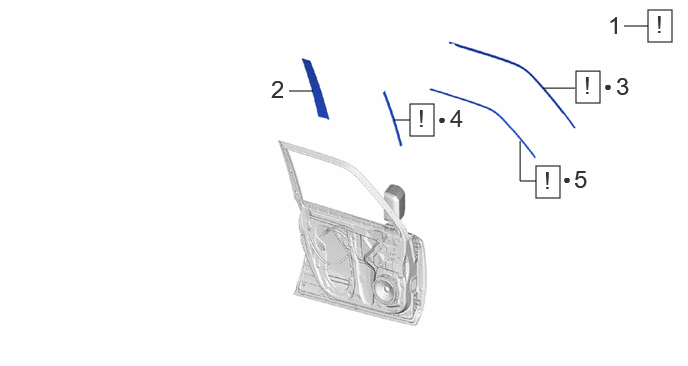

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | PRECAUTION | - | See step 1 | - | - |
| 2 | FRONT DOOR WINDOW FRAME MOULDING LH (CENTER PILLAR SIDE) | 75756D | - | - | - |
| 3 | NO. 1 BLACK OUT TAPE LH | 75922M | See step 3 | - | - |
| 4 | FRONT DOOR NO. 2 STRIPE LH | 75976G | See step 4 | - | - |
| 5 | FRONT DOOR OUTSIDE STRIPE LH | 75986F | See step 5 | - | - |
| • | Non-reusable part | - | - |
