Removal [12/2023 - ]: Procedure

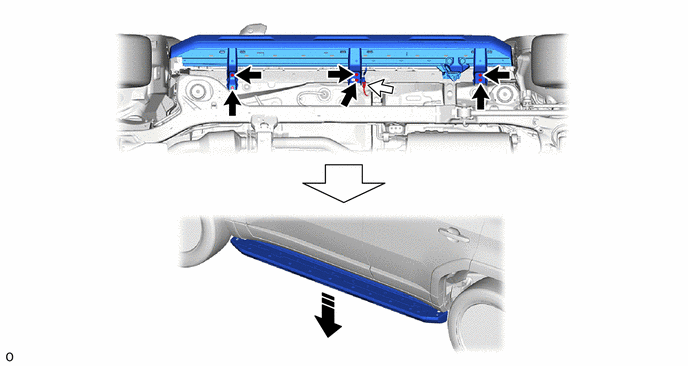

  1. REMOVE STEP SUB-ASSEMBLY LH
    1. GTY1214023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction Bolt
      Connector - -
