Disassembly [12/2023 - ]: Procedure

  1. REMOVE STEP PLATE LH

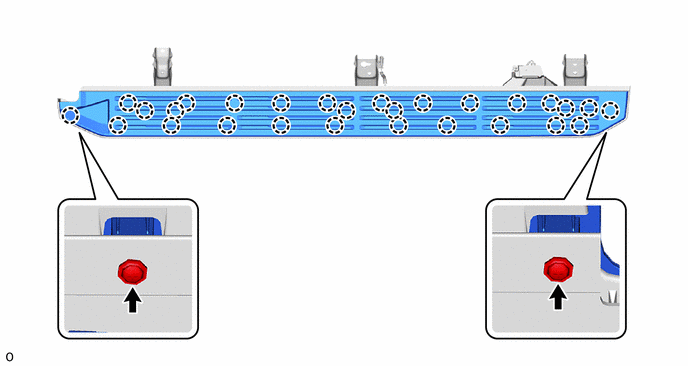

    1. GTY1212685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE SIDE DOOR NO. 2 STEP PLATE COVER

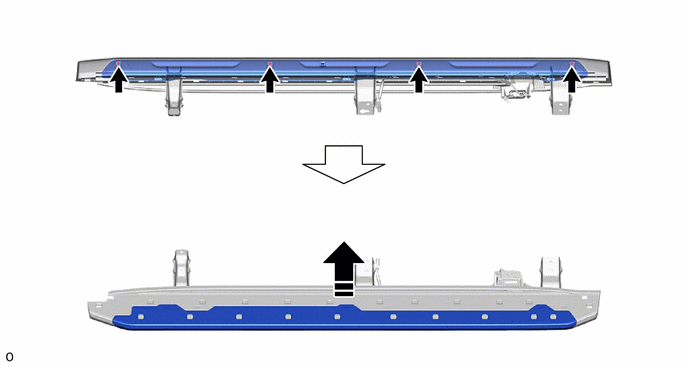

    1. GTY1217037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  3. REMOVE STEP COVER REINFORCEMENT LH

    Refer to REMOVAL [12/2023 - ]
