Removal [12/2023 - ]: Procedure

  1. PRECAUTION
    NOTE:

    When removing parts with double-sided tape applied, heat the portion of the parts with tape residue with a heat light if the double-sided tape is difficult to remove.

    Standard Value

    Part Temperature
    Metal parts 40 to 60°C (104 to 140°F)
    Resin parts 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY749838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the part excessively.

  2. REMOVE FRONT ROOF RACK LEG COVER LH (for Type A)
    1. GTY1218235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
  3. REMOVE CENTER ROOF RACK LEG COVER LH (for Type A)

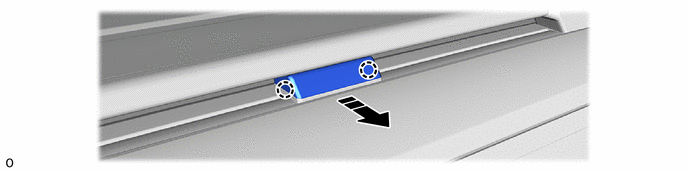

    1. GTY1218178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  4. REMOVE REAR ROOF RACK LEG COVER LH (for Type A)
    1. GTY1216950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
  5. REMOVE ROOF RACK ASSEMBLY LH (for Type A)

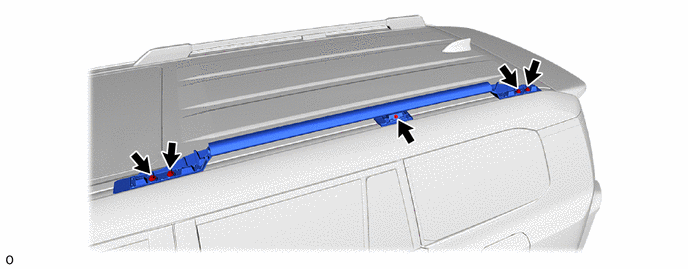

    1. GTY1213191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE NO. 2 ROOF CARRIER SEAL (for Type A)
    1. GTY1211650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Heat the adhesive of the No. 2 roof carrier seal using a heat light.
      2. Remove the 4 No. 2 roof carrier seals.
  7. REMOVE NO. 1 ROOF SIDE GARNISH LID LH (for Type B)
    1. GTY1213194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE NO. 2 ROOF SIDE GARNISH LID LH (for Type B)

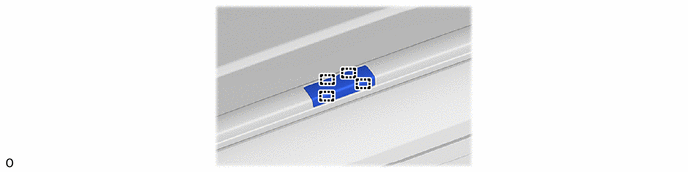

    1. GTY1218595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE NO. 3 ROOF SIDE GARNISH LID LH (for Type B)

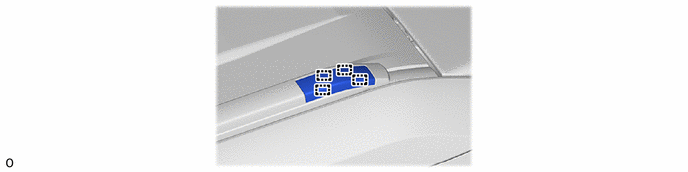

    1. GTY1213197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE ROOF SIDE RAIL GARNISH SUB-ASSEMBLY LH (for Type B)

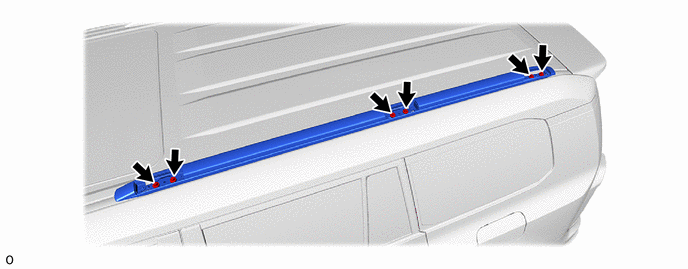

    1. GTY1213215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE NO. 2 ROOF CARRIER SEAL (for Type B)
    1. GTY1211648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Heat the adhesive of the No. 2 roof carrier seal using a heat light.
      2. Remove the 6 No. 2 roof carrier seals.
  12. REMOVE ROOF DRIP SIDE FINISH MOULDING JOINT COVER LH (for Type C)
    Refer to PROCEDURE - Step 3
  13. REMOVE ROOF RACK BRACKET (for Type C)
    1. GTY1213213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY LH

    Refer to REMOVAL [12/2023 - ]

  15. REMOVE ROOF RACK BRACKET LH

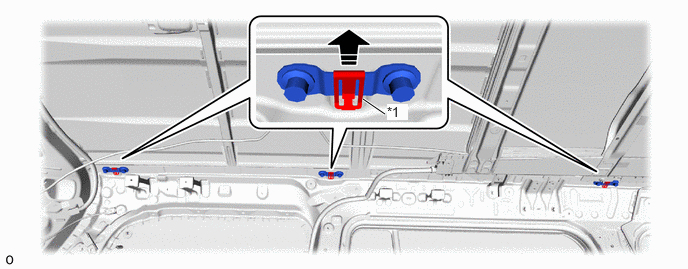

    1. GTY1218771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 INNER ROOF RACK RETAINER - -
      Remove in this Direction - -
