Reassembly [12/2023 - ]: Procedure

NOTE: When installing parts with double-sided tape, heat the portion with adhesive and the application surface of the parts and with a heat light.

Standard Value

WARNING:

• Do not touch the heat light and heated parts.
• Touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

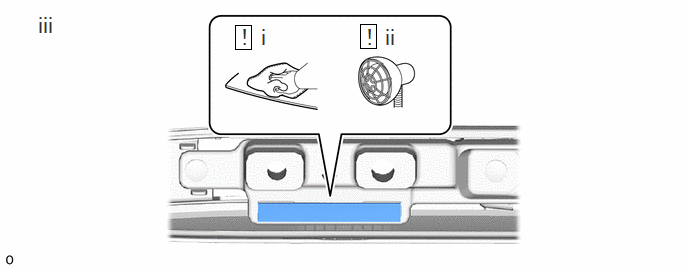

   1. Clean the roof carrier bar LH surface.

      1. Using a heat light, heat the roof carrier bar LH surface.

      2. Remove any remaining double-sided tape from the roof carrier bar LH.

      3. Wipe off any tape adhesive residue with cleaner.

      NOTE:

      • Installing the front roof rack leg cushion LH with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
      • Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
      • Clean the surface even when using a new part.
   2. Using a heat light, heat the roof carrier bar LH and a new front roof rack leg cushion LH.
   3. Install the front roof rack leg cushion LH in the position shown in the illustration.

      HINT:

      Apply pressure so that it does not lift up from the roof carrier bar LH.

2. Use the same procedure for the other side.
