Disassembly [12/2023 - ]: Procedure

PRECAUTION

NOTE:

When removing parts with double-sided tape applied, heat the portion of the parts with tape residue with a heat light if the double-sided tape is difficult to remove.

Standard Value

Part	Temperature
Metal parts	40 to 60°C (104 to 140°F)
Resin parts	20 to 30°C (68 to 86°F)

WARNING:

Do not touch the heat light and heated parts.
Touching the heat light may result in burns.
Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

NOTE:

Do not heat the part excessively.

REMOVE FRONT ROOF RACK LEG CUSHION LH (for Type A)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE CENTER ROOF RACK LEG CUSHION LH (for Type A)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE REAR ROOF RACK LEG CUSHION LH (for Type A)

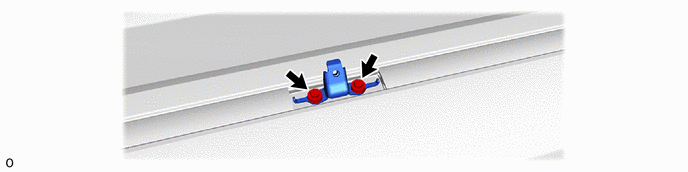

REMOVE NO. 2 ROOF DRIP SIDE FINISH MOULDING RETAINER (for Type A)

REMOVE FRONT ROOF RACK LEG CUSHION LH (for Type B)

Heat the adhesive of the front roof rack leg cushion LH using a heat light.
Remove the front roof rack leg cushion LH.

Use the same procedure for the other side.
