HINT:

• Use the same procedure for the RH and LH sides.
• The procedure described below is for the LH side.

COMPONENTS (DISASSEMBLY)

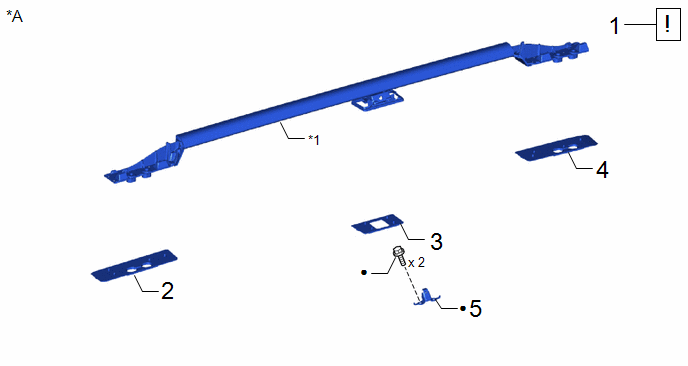

Fig 1: Roof Rack Disassembly Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	PRECAUTION	-	See step  1	-	-
2	FRONT ROOF RACK LEG CUSHION LH	63487A	-	-	-
3	CENTER ROOF RACK LEG CUSHION LH	63485A	-	-	-
4	REAR ROOF RACK LEG CUSHION LH	63489	-	-	-
5	NO. 2 ROOF DRIP SIDE FINISH MOULDING RETAINER	75564B	-	-	-

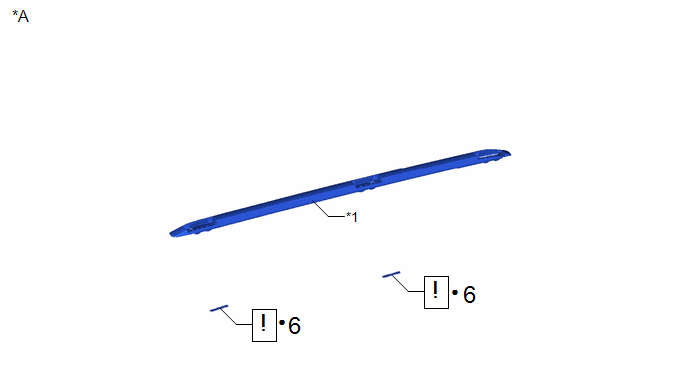

Fig 2: Roof Rack Disassembly Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
6	FRONT ROOF RACK LEG CUSHION LH	63487A	See step  6	-	-
