Reassembly [12/2023 - ]: Procedure

NOTE: When installing parts with double-sided tape, heat the portion with adhesive and the application surface of the parts and with a heat light.

Standard Value

WARNING:

• Do not touch the heat light and heated parts.
• Touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Mark-off Line

   -

   -

   1. Clean the rear spoiler surface.

      1. When reusing the rear spoiler, remove remaining double-sided tape from the rear spoiler.

      2. Using a heat light, heat the rear spoiler surface.

      3. Wipe off any tape adhesive residue with cleaner.

      NOTE:

      • Installing the rear spoiler No. 1 protector with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
      • Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
      • Clean the surface even when using a new part.
   2. Using a heat light, heat the rear spoiler and a new rear spoiler No. 1 protector.
   3. Install the rear spoiler No. 1 protector in the position shown in the illustration.

      HINT:

      Apply pressure so that it does not lift up from the rear spoiler.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Mark-off Line

   -

   -

   1. Clean the rear spoiler surface.

      1. When reusing the rear spoiler, remove remaining double-sided tape from the rear spoiler.

      2. Using a heat light, heat the rear spoiler surface.

      3. Wipe off any tape adhesive residue with cleaner.

      NOTE:

      • Installing the rear spoiler No. 1 protector with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
      • Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
      • Clean the surface even when using a new part.
   2. Using a heat light, heat the rear spoiler and a new rear spoiler No. 1 protector.

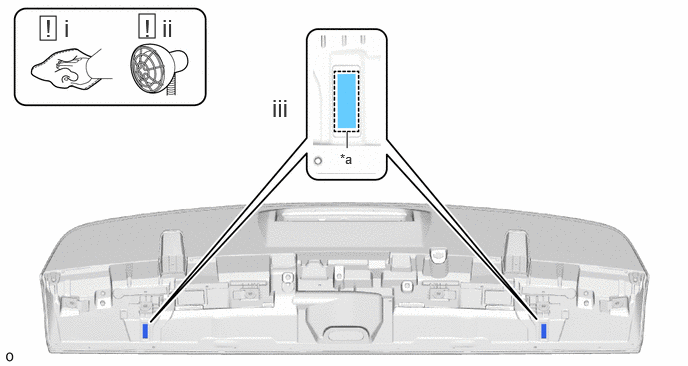

   3. Install the 2 rear spoiler No. 1 protectors in the position shown in the illustration.

      HINT:

      Apply pressure so that it does not lift up from the rear spoiler.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Mark-off Line

   -

   -

   1. Clean the rear spoiler surface.

      1. When reusing the rear spoiler, remove remaining double-sided tape from the rear spoiler.

      2. Using a heat light, heat the rear spoiler surface.

      3. Wipe off any tape adhesive residue with cleaner.

      NOTE:

      • Installing the rear spoiler No. 1 protector with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
      • Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
      • Clean the surface even when using a new part.
   2. Using a heat light, heat the rear spoiler and a new rear spoiler No. 1 protector.
   3. Install the 2 rear spoiler No. 1 protectors in the position shown in the illustration.

      HINT:

      Apply pressure so that it does not lift up from the rear spoiler.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Mark-off Line

   -

   -

   1. Clean the rear spoiler surface.

      1. When reusing the rear spoiler, remove remaining double-sided tape from the rear spoiler.

      2. Using a heat light, heat the rear spoiler surface.

      3. Wipe off any tape adhesive residue with cleaner.

      NOTE:

      • Installing the rear spoiler No. 1 protector with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
      • Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
      • Clean the surface even when using a new part.
   2. Using a heat light, heat the rear spoiler and a new rear spoiler No. 1 protector.
   3. Install the 4 rear spoiler No. 1 protectors in the position shown in the illustration.

      HINT:

      Apply pressure so that it does not lift up from the rear spoiler.
