Caution / Notice / Hint
COMPONENTS (REASSEMBLY)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | PRECAUTION | - | See step 1 | - | - |
| 2 | NO. 2 LUGGAGE COMPARTMENT SIDE COVER PROTECTOR | 58724E | - | - | - |
| 3 | NO. 1 LUGGAGE COMPARTMENT SIDE COVER PROTECTOR | 58723C | - | - | - |
| 4 | REAR BUMPER SIDE SUPPORT LH | 52156A | - | - | - |
| 5 | REAR BUMPER SIDE SUPPORT RH | 52155A | - | - | - |
| 6 | REAR BUMPER BAR REINFORCEMENT LH | 52174D | - | - | - |
| 7 | REAR BUMPER BAR REINFORCEMENT RH | 52173D | - | - | - |
| 8 | REAR BUMPER SIDE MOUNTING BRACKET ASSEMBLY LH | 52190 | - | - | - |
| 9 | REAR BUMPER SIDE MOUNTING BRACKET ASSEMBLY RH | 52180 | - | - | - |
| 10 | REAR BUMPER ENERGY ABSORBER | 52615 | - | - | - |
*A
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

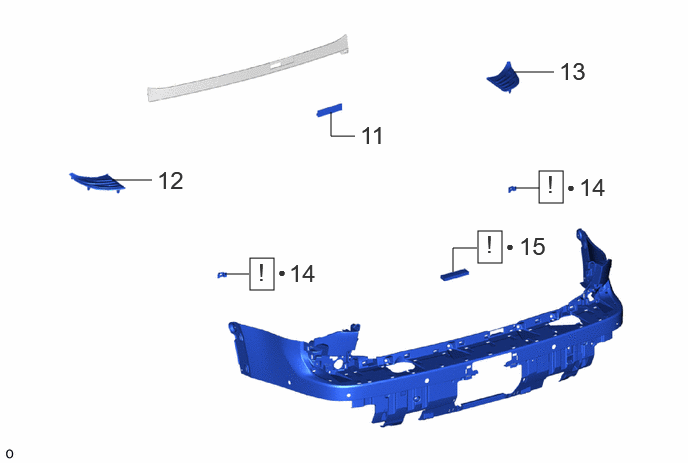

| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 11 | REAR BUMPER PLATE RH | 52163A | - | - | - |
| 12 | BACK STEP PLATE LH | 52358A | - | - | - |
| 13 | BACK STEP PLATE RH | 52357A | - | - | - |
| 14 | REAR ULTRASONIC SENSOR CLIP | 89348Y | See step 14 | - | - |
| 15 | REAR BUMPER CENTER PAD | 52461 | See step 15 | - | - |
| • | Non-reusable part | - | - |
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 16 | MOULDING TAPE | 75896F | See step 16 | - | - |
| 17 | REAR BUMPER SIDE MOUNTING BRACKET LH | 52186B | - | - | - |
| 18 | REAR BUMPER SIDE MOUNTING BRACKET RH | 52185B | - | - | - |
| 19 | REAR BUMPER EXTENSION LH | 52153B | - | - | - |
| 20 | REAR BUMPER EXTENSION RH | 52152B | - | - | - |
| 21 | REAR BUMPER NO. 2 CORNER EXTENSION LH | 52166C | - | - | - |
| 22 | REAR BUMPER NO. 2 CORNER EXTENSION RH | 52165E | - | - | - |
| 23 | REAR BUMPER EXTENSION SUB-ASSEMBLY LH | - | - | - | - |
| 24 | REAR BUMPER EXTENSION SUB-ASSEMBLY RH | - | - | - | - |
| 25 | REAR BUMPER SIDE EXTENSION LH | 52105A | - | - | - |
| 26 | REAR BUMPER SIDE EXTENSION RH | 52161E | - | - | - |
| 27 | REAR NO. 2 STEP COVER | - | - | - | - |
| 28 | REAR BUMPER CENTER SUB-ASSEMBLY | 52105A | - | - | - |
| *A | for Standard | *B | for Off Road Package |
| *1 | REAR BUMPER SIDE EXTENSION LH | *2 | REAR BUMPER SIDE EXTENSION RH |
| • | Non-reusable part | - | - |

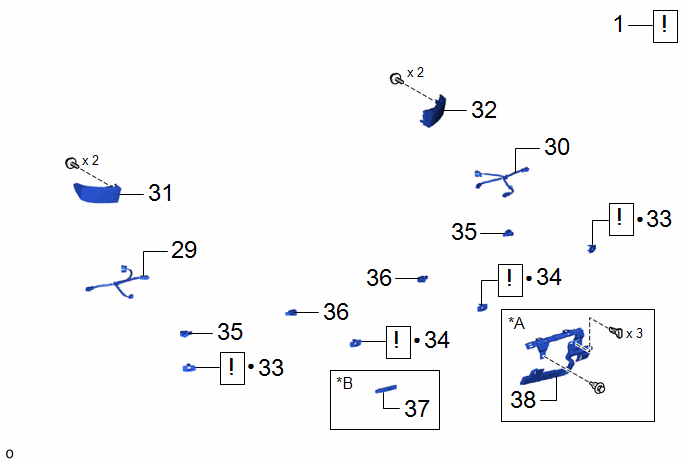

| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 29 | REAR BUMPER WIRE | 82183A | - | - | - |
| 30 | NO. 2 LUGGAGE ROOM WIRE | 82182 | - | - | - |
| 31 | REFLEX REFLECTOR ASSEMBLY LH | 81490E | - | - | - |
| 32 | REFLEX REFLECTOR ASSEMBLY RH | 81480D | - | - | - |
| 33 | REAR CORNER ULTRASONIC SENSOR RETAINER | 89C48A | See step 33 | - | - |
| 34 | REAR CENTER ULTRASONIC SENSOR RETAINER | 89C48B | See step 34 | - | - |
| 35 | REAR CORNER ULTRASONIC SENSOR | 89342 | - | - | - |
| 36 | REAR CENTER ULTRASONIC SENSOR | 89342A | - | - | - |
| 37 | NO. 2 BLE DOOR DIGITAL KEY RECEIVER ASSEMBLY | 890G0A | - | - | - |
| 38 | KICK DOOR CONTROL SENSOR ASSEMBLY | 891B0 | See step 38 | - | - |
| *A | w/ Hands Free Power Back Door | *B | w/ Digital Key System |
| • | Non-reusable part | - | - |
