Home >> Lexus >> 2024 >> GX 550 Overtrail >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> Exterior Panels / Trim - Service Information (1 Of 2) >> Grille Shutter >> Removal [12/2023 - ] >> Procedure

Removal [12/2023 - ]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [12/2023 - ]

  2. REMOVE RADIATOR SHUTTER ASSEMBLY

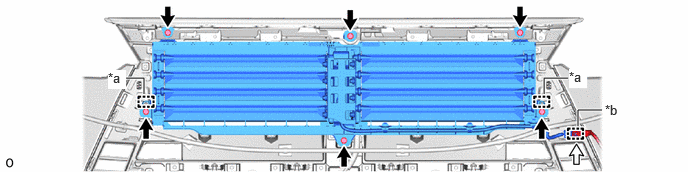

    1. GTY1214896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Guide *b Clamp
      Bolt Connector
