Caution / Notice / Hint

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the front door belt moulding assembly LH removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedures	Necessary Procedures	Effect/Inoperative Function when Necessary Procedures are not Performed	Link
Front door glass sub- assembly LH Front door glass sub- assembly RH Front door glass run LH Front door glass run RH	Initialize power window control system	Auto up and down function Jam protection function Catch protection function Remote control function Key-linked function Wireless transmitter-linked function Key-off operation function Window open warning function	Refer to REGISTRATION [12/2023 - ]

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function when Necessary Procedures are not Performed	Necessary Procedures	Link
Lighting system (EXT) Cornering lights	Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.	Refer to INITIALIZATION [12/2023 - ]
Front camera system		Refer to INITIALIZATION [12/2023 - ]

Learning completes when vehicle is operated normally

Effect/Inoperative Function when Necessary Procedures are not Performed	Necessary Procedures	Link
Power back door system	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	Refer to INITIALIZATION [12/2023 - ]
Air conditioning system	After the ignition switch is turned to ON, the servo motor and expansion valve standard position is recognized.	-

Use the same procedure for the RH and LH sides.
The procedure described below is for the LH side.

COMPONENTS (REMOVAL)

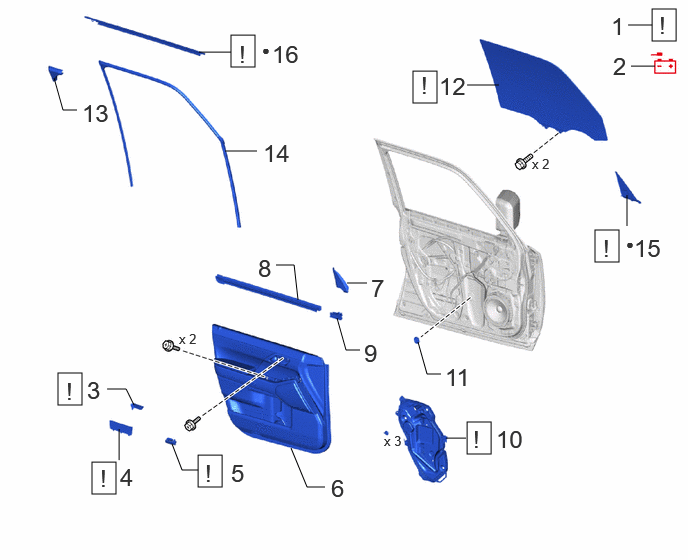

Fig 1: Front Door Belt Moulding Removal Components

Procedure		Part Name Code
1	PRECAUTION	-	See step 1	-	-
2	DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL	-	See step 2	-	-
3	FRONT DOOR UPPER TRIM COVER LH	67782	See step 3	-	-
4	DOOR ARMREST COVER SUB-ASSEMBLY LH	74038C	See step 4	-	-
5	COURTESY LIGHT ASSEMBLY	81230	See step 5	-	-
6	FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH	67602	-	-	-
7	FRONT DOOR LOWER FRAME BRACKET GARNISH LH	67492A	-	-	-
8	FRONT DOOR INNER GLASS WEATHERSTRIP LH	68172A	-	-	-
9	FRONT DOOR REAR OUTSIDE SEAL LH	67852D	-	-	-
10	FRONT DOOR SERVICE HOLE COVER LH	67832	See step 10	-	-
11	HOLE PLUG	-	-	-	-
12	FRONT DOOR GLASS SUB-ASSEMBLY LH	68102	See step 12	-	-
13	DOOR FRAME GARNISH LH	67664C	-	-	-
14	FRONT DOOR GLASS RUN LH	68151E	-	-	-
15	FRONT DOOR FRONT LOWER FRAME UPPER COVER LH	67496C	See step 15	-	-
16	FRONT DOOR BELT MOULDING LH	75712B	See step 16	-	-

•

Non-reusable part
