Reassembly [12/2023 - ]: Procedure
- PRECAUTION NOTE:
When installing parts with double-sided tape, heat the portion with adhesive and the application surface of the parts and with a heat light.
Standard Value
Part Temperature Metal parts 40 to 60°C (104 to 140°F) Resin parts 20 to 30°C (68 to 86°F) WARNING:- Do not touch the heat light and heated parts.
- Touching the heat light may result in burns.
- Touching heated parts for a long time may result in burns.
*a Heated Part *b Heat Light NOTE:Do not heat the parts excessively.
- INSTALL FRONT BUMPER SIDE SUPPORT LH
Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)
- INSTALL FRONT BUMPER SIDE SUPPORT RH
- Use the same procedure described for the LH side.
- INSTALL FRONT BUMPER ARM SUB-ASSEMBLY LH
-
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Attach the guide and install the front bumper arm sub-assembly LH.
- Install the 4 bolts in the order shown in the illustration.
Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)
-
- INSTALL FRONT BUMPER ARM SUB-ASSEMBLY RH
- Use the same procedure described for the LH side.
- INSTALL FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY
HINT:
The illustration is an example, so the details may differ.
-
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Install the front bumper reinforcement sub-assembly with the 8 bolts in the order shown in the illustration.
Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)
- Install the front bumper reinforcement sub-assembly with the 8 bolts in the order shown in the illustration.
-
- INSTALL FRONT BUMPER MOUNTING BRACKET LH

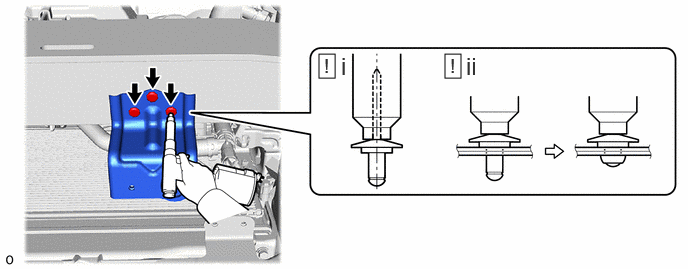

- Install the No. 3 nose piece to an air riveter and insert the mandrel section of a new 6.4 mm rivet into the nose piece.
- Press the rivets perpendicularly to the installation holes. Using the air riveter, install the front bumper mounting bracket LH with the 3 rivets.
HINT:
Pull the trigger again to cut off the rivet if it is not cut off.
- INSTALL FRONT BUMPER MOUNTING BRACKET RH
- Use the same procedure described for the LH side.

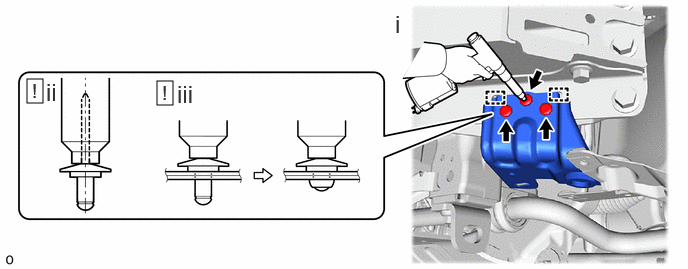

- INSTALL FRONT BUMPER NO. 2 RETAINER BRACKET
- Attach the guide and install the front bumper No. 2 retainer bracket.
- Install the No. 3 nose piece to an air riveter and insert the mandrel section of a new 6.4 mm rivet into the nose piece.
- Press the rivets perpendicularly to the installation holes. Using the air riveter, install the 3 rivets.
HINT:
Pull the trigger again to cut off the rivet if it is not cut off.
- INSTALL FRONT BUMPER NO. 1 RETAINER BRACKET
- Use the same procedure described for the front bumper No. 2 retainer bracket.
- INSTALL FRONT WHEEL NO. 4 OPENING EXTENSION PAD
- INSTALL FRONT WHEEL NO. 3 OPENING EXTENSION PAD
- INSTALL FRONT BUMPER GUARD BASE COVER
Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)
- INSTALL FRONT BUMPER LOWER ABSORBER
- INSTALL FRONT BUMPER UPPER CENTER RETAINER
Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)
- INSTALL FRONT BUMPER ENERGY ABSORBER
Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)
- INSTALL FRONT BUMPER SUB-ASSEMBLY
- INSTALL FRONT BUMPER EXTENSION MOUNTING BRACKET
- INSTALL FOG LIGHT COVER LH
- INSTALL FOG LIGHT COVER RH
- INSTALL FRONT BUMPER RETAINER
*a Mark-off Line - - - Clean the surface of the front bumper cover.
1. Using a heat light, heat the front bumper cover surface.
2. Remove any remaining double-sided tape from the front bumper cover.
3. Wipe off any tape adhesive residue with cleaner.
NOTE:- Installing the front bumper retainer with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
- Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
- Clean the surface even when using a new part.
- Apply primer.
1. Apply primer to the front bumper cover on the installation area of the front bumper retainer using a brush or felt.
NOTE:- Replace the brush or felt if it is dirty or has become hardened.
- Keep any painted surface free from primer.
- If the primer contacts a painted surface, it may leave light primer marks.
- Do not touch surfaces to which primer has been applied until the front bumper retainer has been attached.
2. Let the primer dry sufficiently.
NOTE:Do not touch applied surfaces until the primer is dry.
Recommended drying time
10 minutes or more (at 23°C (73°F))
- Using a heat light, heat the front bumper cover and a new front bumper retainer.
- Align the 3 front bumper retainers with the mark-off line on the front bumper cover and install it as shown in the illustration.NOTE:
The application strength of the front bumper retainer will weaken if reapplied. If reapplication is necessary, be sure to replace it with a new one.
HINT:
Apply pressure so that it does not lift up from the front bumper cover.
- Clean the surface of the front bumper cover.
- INSTALL ULTRASONIC SENSOR CLIP
*a Mark-off Line - - - Clean the surface of the front bumper cover.
1. Using a heat light, heat the front bumper cover surface.
2. Remove any remaining double-sided tape from the front bumper cover.
3. Wipe off any tape adhesive residue with cleaner.
NOTE:- Installing the ultrasonic sensor clip with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
- Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
- Clean the surface even when using a new part.
- Apply primer.
1. Apply primer to the front bumper cover on the installation area of the ultrasonic sensor clip using a brush or felt.
NOTE:- Replace the brush or felt if it is dirty or has become hardened.
- Keep any painted surface free from primer.
- If the primer contacts a painted surface, it may leave light primer marks.
- Do not touch surfaces to which primer has been applied until the ultrasonic sensor clip has been attached.
2. Let the primer dry sufficiently.
NOTE:Do not touch applied surfaces until the primer is dry.
Recommended drying time
10 minutes or more (at 23°C (73°F))
- Using a heat light, heat the front bumper cover and a new ultrasonic sensor clip.
- Align the 6 ultrasonic sensor clips with the mark-off line on the front bumper cover and install it as shown in the illustration.NOTE:
The application strength of the ultrasonic sensor clip will weaken if reapplied. If reapplication is necessary, be sure to replace it with a new one.
HINT:
Apply pressure so that it does not lift up from the front bumper cover.
- Clean the surface of the front bumper cover.
- INSTALL NO. 1 MOULDING TAPE
*a Mark-off Line - - - Clean the surface of the front bumper cover.
1. Using a heat light, heat the front bumper cover surface.
2. Remove any remaining double-sided tape from the front bumper cover.
3. Wipe off any tape adhesive residue with cleaner.
NOTE:- Installing the No. 1 moulding tape with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
- Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
- Clean the surface even when using a new part.
- Apply primer.
1. Apply primer to the front bumper cover on the installation area of the No. 1 moulding tape using a brush or felt.
NOTE:- Replace the brush or felt if it is dirty or has become hardened.
- Keep any painted surface free from primer.
- If the primer contacts a painted surface, it may leave light primer marks.
- Do not touch surfaces to which primer has been applied until the No. 1 moulding tape has been attached.
2. Let the primer dry sufficiently.
NOTE:Do not touch applied surfaces until the primer is dry.
Recommended drying time
10 minutes or more (at 23°C (73°F))
- Using a heat light, heat the front bumper cover and a new No. 1 moulding tape.
- Align the No. 1 moulding tape with the mark-off line on the front bumper cover and install it as shown in the illustration.NOTE:
The application strength of the No. 1 moulding tape will weaken if reapplied. If reapplication is necessary, be sure to replace it with a new one.
HINT:
Apply pressure so that it does not lift up from the front bumper cover.
- Clean the surface of the front bumper cover.
- Use the same procedure for the other side.
- INSTALL FRONT BUMPER REINFORCEMENT EXTENSION LH

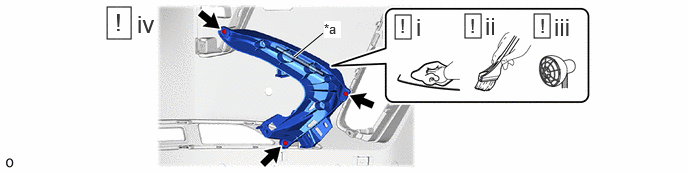

*a Mark-off Line - - - Clean the surface of the front bumper cover.
1. Using a heat light, heat the front bumper cover surface.
2. Remove any remaining double-sided tape from the front bumper cover.
3. Wipe off any tape adhesive residue with cleaner.
NOTE:- Installing the front bumper reinforcement extension LH with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
- Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
- Clean the surface even when using a new part.
- Apply primer.
1. Apply primer to the front bumper cover on the installation area of the front bumper reinforcement extension LH using a brush or felt.
NOTE:- Replace the brush or felt if it is dirty or has become hardened.
- Keep any painted surface free from primer.
- If the primer contacts a painted surface, it may leave light primer marks.
- Do not touch surfaces to which primer has been applied until the front bumper reinforcement extension LH has been attached.
2. Let the primer dry sufficiently.
NOTE:Do not touch applied surfaces until the primer is dry.
Recommended drying time
10 minutes or more (at 23°C (73°F))
- Using a heat light, heat the front bumper cover and a new front bumper reinforcement extension LH.
- Install the front bumper reinforcement extension LH with the 3 screws.NOTE:
The application strength of the front bumper reinforcement extension LH will weaken if reapplied. If reapplication is necessary, be sure to replace it with a new one.
HINT:
Apply pressure so that it does not lift up from the front bumper cover.
- Clean the surface of the front bumper cover.
- INSTALL FRONT BUMPER REINFORCEMENT EXTENSION RH
- Use the same procedure described for the LH side.
- INSTALL RADIATOR SIDE GRILLE LH
- INSTALL RADIATOR SIDE GRILLE RH
- INSTALL RADIATOR GRILLE PROTECTOR
- INSTALL RADIATOR GRILLE SUB-ASSEMBLY
- INSTALL FRONT ENERGY ABSORBER MOUNTING PLATE
- INSTALL NO. 4 ENGINE ROOM WIRE
- INSTALL HEADLIGHT CLEANER HOSE ASSEMBLY (w/ Headlight Cleaner System)
- INSTALL RADIATOR GRILLE (OR FRONT PANEL) EMBLEM
- INSTALL FOG LIGHT ASSEMBLY LH (w/ Fog Light)
- INSTALL FOG LIGHT ASSEMBLY RH (w/ Fog Light)
- INSTALL NO. 2 WASHER BRACKET (w/ Headlight Cleaner System)
Refer to PROCEDURE - Step 1 - INSTALL WASHER BRACKET (w/ Headlight Cleaner System)
- Use the same procedure described for the No. 2 washer bracket.
- INSTALL HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH (w/ Headlight Cleaner System)
- INSTALL HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH (w/ Headlight Cleaner System)
- INSTALL HEADLIGHT WASHER COVER LH (w/ Headlight Cleaner System)
- INSTALL HEADLIGHT WASHER COVER RH (w/ Headlight Cleaner System)
- INSTALL FRONT CENTER ULTRASONIC SENSOR RETAINER
Refer to PROCEDURE - Step 2 - INSTALL FRONT CORNER ULTRASONIC SENSOR RETAINER
- Use the same procedure described for the front center ultrasonic sensor retainer.
- INSTALL FRONT CENTER ULTRASONIC SENSOR
- INSTALL FRONT CORNER ULTRASONIC SENSOR
- INSTALL FRONT TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System)
- INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY
Refer to PROCEDURE - Step 1
- INSTALL RADIATOR SHUTTER ASSEMBLY (w/ Grille Shutter)
See step 1
