Caution / Notice / Hint

COMPONENTS (REASSEMBLY)

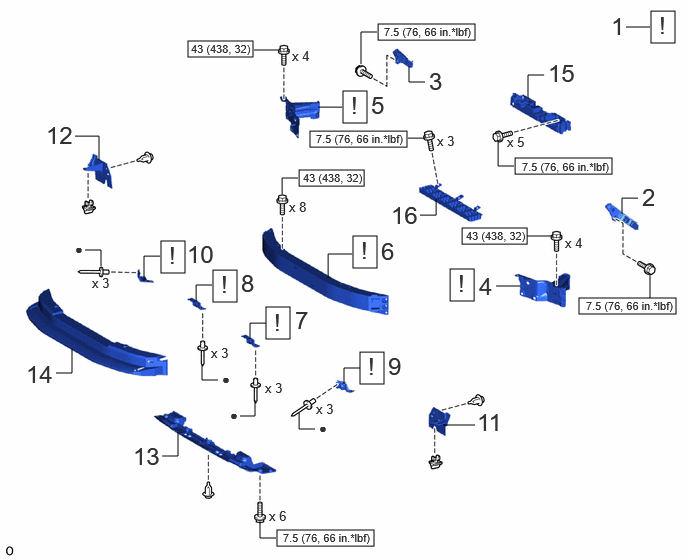

Fig 1: Front Bumper Reassembly Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	PRECAUTION	-	See step 1	-	-
2	FRONT BUMPER SIDE SUPPORT LH	52116A	-	-	-
3	FRONT BUMPER SIDE SUPPORT RH	52115A	-	-	-
4	FRONT BUMPER ARM SUB-ASSEMBLY LH	52012A	See step 4	-	-
5	FRONT BUMPER ARM SUB-ASSEMBLY RH	52011A	See step 4	-	-
6	FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY	52021	See step 6	-	-
7	FRONT BUMPER MOUNTING BRACKET LH	52148E	See step 7	-	-
8	FRONT BUMPER MOUNTING BRACKET RH	52147E	See step 7	-	-
9	FRONT BUMPER NO. 2 RETAINER BRACKET	52534	See step 9	-	-
10	FRONT BUMPER NO. 1 RETAINER BRACKET	52533	See step 9	-	-
11	FRONT WHEEL NO. 4 OPENING EXTENSION PAD	53854	-	-	-
12	FRONT WHEEL NO. 3 OPENING EXTENSION PAD	53853D	-	-	-
13	FRONT BUMPER GUARD BASE COVER	52437B	-	-	-
14	FRONT BUMPER LOWER ABSORBER	52618	-	-	-
15	FRONT BUMPER UPPER CENTER RETAINER	52521	-	-	-
16	FRONT BUMPER ENERGY ABSORBER	52611	-	-	-

N*m (kgf*cm, ft.*lbf): Specified torque

•

Non-reusable part

Fig 2: Front Bumper Reassembly Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
17	FRONT BUMPER SUB-ASSEMBLY	52101C	-	-	-
18	FRONT BUMPER EXTENSION MOUNTING BRACKET	52114A	-	-	-
19	FOG LIGHT COVER LH	81482C	-	-	-
20	FOG LIGHT COVER RH	81481E	-	-	-
21	FRONT BUMPER RETAINER	52116B	See step 21	-	-
22	ULTRASONIC SENSOR CLIP	-	See step 22	-	-
23	NO. 1 MOULDING TAPE	75895K	See step 23	-	-
24	FRONT BUMPER REINFORCEMENT EXTENSION LH	52126B	See step 24	-	-
25	FRONT BUMPER REINFORCEMENT EXTENSION RH	52125B	See step 24	-	-
26	RADIATOR SIDE GRILLE LH	53113F	-	-	-
27	RADIATOR SIDE GRILLE RH	53112H	-	-	-
28	RADIATOR GRILLE PROTECTOR	53119B	-	-	-
29	RADIATOR GRILLE SUB-ASSEMBLY	53101	-	-	-
30	FRONT ENERGY ABSORBER MOUNTING PLATE	52143E	-	-	-

*1	FRONT BUMPER COVER	-	-
•	Non-reusable part	-	-

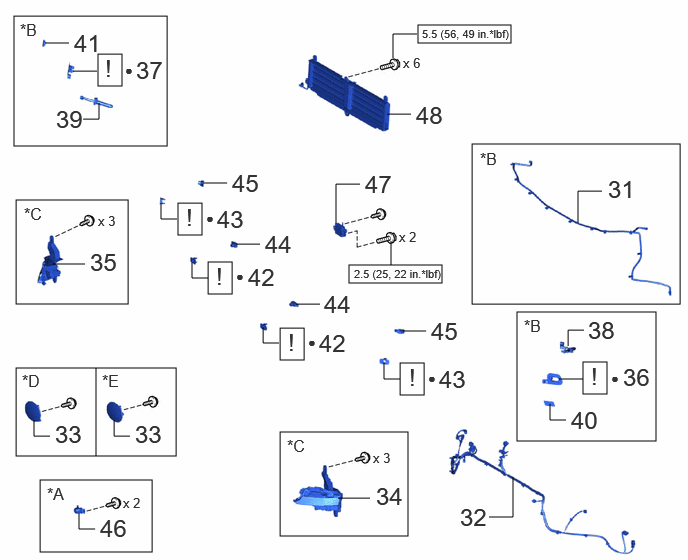

Fig 3: Front Bumper Reassembly Components With Torque Specifications (3 Of 3)

Procedure		Part Name Code
31	NO. 4 ENGINE ROOM WIRE	82114	-	-	-
32	HEADLIGHT CLEANER HOSE ASSEMBLY	-	-	-	-
33	RADIATOR GRILLE (OR FRONT PANEL) EMBLEM	75311	-	-	-
34	FOG LIGHT ASSEMBLY LH	81220	-	-	-
35	FOG LIGHT ASSEMBLY RH	81210A	-	-	-
36	NO. 2 WASHER BRACKET	85362	See step 36	-	-
37	WASHER BRACKET	85361C	See step 36	-	-
38	HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH	85208A	-	-	-
39	HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH	85207A	-	-	-
40	HEADLIGHT WASHER COVER LH	85354	-	-	-
41	HEADLIGHT WASHER COVER RH	85353	-	-	-
42	FRONT CENTER ULTRASONIC SENSOR RETAINER	89C48E	See step 42	-	-
43	FRONT CORNER ULTRASONIC SENSOR RETAINER	89C48D	See step 42	-	-
44	FRONT CENTER ULTRASONIC SENSOR	89341L	-	-	-
45	FRONT CORNER ULTRASONIC SENSOR	89341K	-	-	-
46	FRONT TELEVISION CAMERA ASSEMBLY	86790B	-	-	-
47	MILLIMETER WAVE RADAR SENSOR ASSEMBLY	88211B	-	-	-
48	RADIATOR SHUTTER ASSEMBLY	53180E	-	-	-

*A	w/ Panoramic View Monitor System	*B	w/ Headlight Cleaner System
*C	w/ Fog Light	*D	w/ Heater
*E	w/o Heater	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
