Caution / Notice / Hint

HINT:

COMPONENTS (REASSEMBLY)

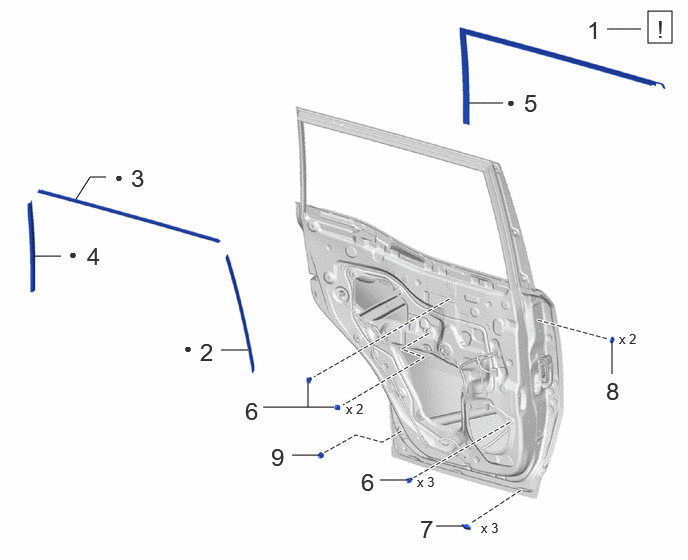

Fig 1: Rear Door Reassembly Components (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	PRECAUTION	-	See step 1	-	-
2	REAR DOOR LOWER OUTSIDE STRIPE LH	75978H	-	-	-
3	NO. 4 BLACK OUT TAPE LH	75928C	-	-	-
4	REAR DOOR OUTSIDE STRIPE LH	75988E	-	-	-
5	NO. 2 BLACK OUT TAPE LH	75924C	-	-	-
6	SCREW GROMMET	-	-	-	-
7	REAR DOOR DUST PROOF SEAL	67837C	-	-	-
8	HOLE PLUG	-	-	-	-
9	REAR DOOR PANEL CUSHION	67003C	-	-	-

•

Non-reusable part

Fig 2: Rear Door Reassembly Components With Torque Specifications (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
10	REAR DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY LH	75078	-	-	-
11	OUTSIDE NO. 2 MOULDING RETAINER	75393	-	-	-
12	REAR DOOR MOULDING OUTSIDE LH	75742	-	-	-
13	REAR DOOR WINDOW FRAME MOULDING LH (CENTER PILLAR SIDE)	75762B	See step 13	-	-
14	REAR DOOR BELT MOULDING LH	75722A	-	-	-
15	REAR DOOR NO. 3 WEATHERSTRIP LH	67896	See step 15	-	-
16	REAR DOOR NO. 2 WEATHERSTRIP LH	67888A	See step 16	-	-
17	REAR DOOR WEATHERSTRIP LH	67872	See step 17	-	-
18	REAR DOOR CHECK ASSEMBLY LH	68640A	See step 18	-	-

*A	w/ Weatherstrip	-	-
*1	HOLE PLUG	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
	Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent	*	Precoated part

Fig 3: Rear Door Reassembly Components (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
19	REAR DOOR WIRE RH	82153A	-	-	-
20	REAR DOOR LOCK CONTROL KNOB BEZEL LH	69762B	-	-	-
21	REAR DOOR LOCK CONTROL KNOB HOLDER	69751H	-	-	-
22	REAR DOOR INSIDE HANDLE SUB-ASSEMBLY LH	69206C	-	-	-

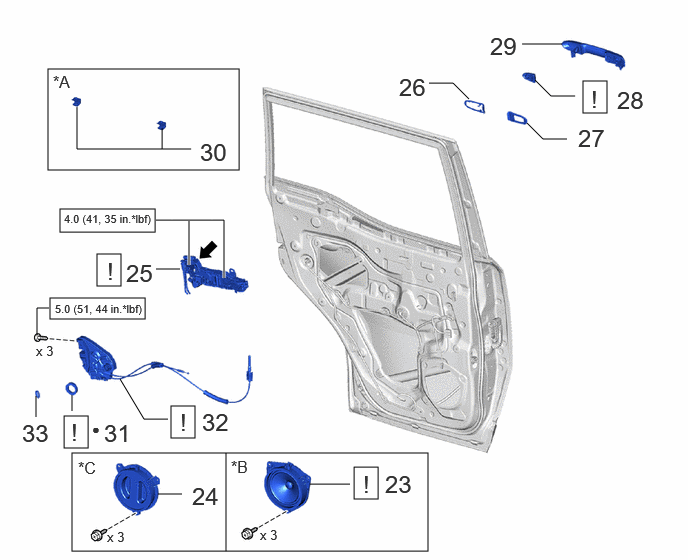

Fig 4: Rear Door Reassembly Components With Torque Specifications (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
23	REAR SPEAKER ASSEMBLY	86160B	See step 23	-	-
24	REAR DOOR SPEAKER COVER	86262D	-	-	-
25	REAR DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY LH	69204A	See step 25	-	-
26	REAR DOOR OUTSIDE NO. 2 HANDLE PAD LH	69254B	-	-	-
27	REAR DOOR OUTSIDE NO. 1 HANDLE PAD LH	69252B	-	-	-
28	REAR DOOR OUTSIDE HANDLE COVER LH	69227L	See step 28	-	-
29	REAR DOOR OUTSIDE HANDLE ASSEMBLY LH	69240	-	-	-
30	CURTAIN HOOK LH	65923M	-	-	-
31	DOOR LOCK WIRING HARNESS SEAL	69318D	See step 31	-	-
32	REAR DOOR LOCK ASSEMBLY LH	69340	See step 32	-	-
33	REAR DOOR LOCK CHILD PROTECTION COVER LH	67836H	-	-	-

*A	w/ Sunshade	*B	for 10 Speakers
*C	for 21 Speakers	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
	MP grease	-	-

Fig 5: Rear Door Reassembly Components With Torque Specifications (5 Of 6)

Procedure		Part Name Code
34	REAR DOOR WINDOW REGULATOR ASSEMBLY	-	See step 34	-	-
35	REAR DOOR GLASS SUB-ASSEMBLY LH	68104	See step 35	-	-
36	REAR DOOR QUARTER WINDOW WEATHERSTRIP LH	68189	-	-	-
37	REAR DOOR QUARTER WINDOW GLASS LH	68124C	-	-	-
38	REAR DOOR REAR WINDOW FRAME MOULDING LH	75766C	-	-	-
39	REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY LH	67408E	See step 39	-	-
40	REAR DOOR GLASS RUN LH	68152C	-	-
41	REAR DOOR FRAME GARNISH LH	67674A	-	-	-
42	REAR DOOR SERVICE HOLE COVER LH	67842E	See step 42	-	-

*1	BUTYL TAPE	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
	MP grease	-	-

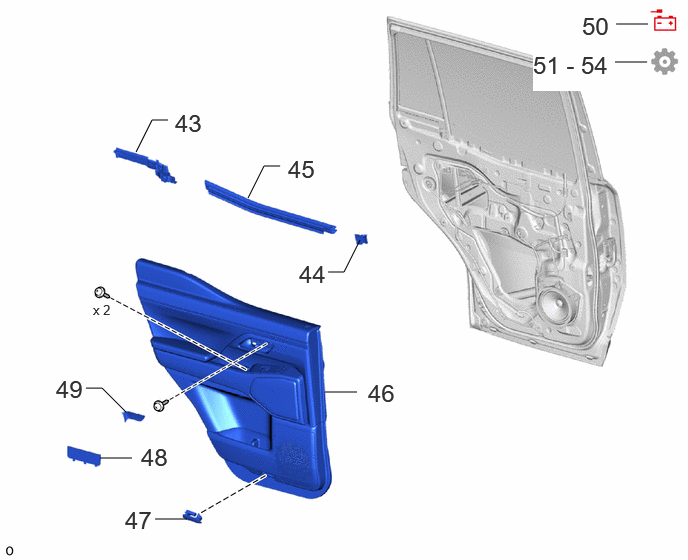

Fig 6: Rear Door Reassembly Components (6 Of 6)

Procedure		Part Name Code
43	REAR DOOR REAR BELT SEAL LH	68199	-	-	-
44	REAR DOOR NO. 1 VENT SEAL LH	67848A	-	-	-
45	REAR DOOR INNER GLASS WEATHERSTRIP LH	68174	-	-	-
46	REAR DOOR TRIM BOARD SUB-ASSEMBLY LH	67604	-	-	-
47	COURTESY LIGHT ASSEMBLY	67604	-	-	-
48	REAR DOOR ARMREST COVER LH	74222C	-	-	-
49	REAR DOOR UPPER TRIM COVER LH	67786D	-	-	-
50	CONNECT CABLE TO NEGATIVE BATTERY TERMINAL	-	-	-	-
51	INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL	-	-	-	See step 51
52	INITIALIZE POWER WINDOW CONTROL SYSTEM	-	-	-	See step 52
53	INSPECT POWER WINDOW OPERATION	-	-	-	See step 53
54	INSPECT POWER DOOR LOCK OPERATION	-	-	-	See step 54
