Removal [12/2023 - ]: Procedure

  1. REMOVE REAR BUMPER ASSEMBLY

    Refer to REMOVAL [12/2023 - ]

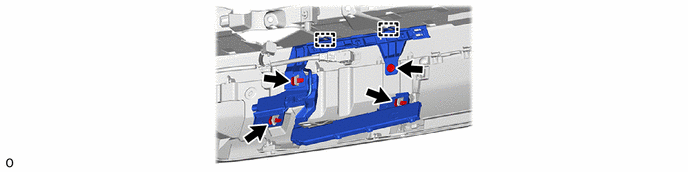

  2. REMOVE KICK DOOR CONTROL SENSOR ASSEMBLY
    1. GTY1215917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
