Caution / Notice / Hint

COMPONENTS (REMOVAL)

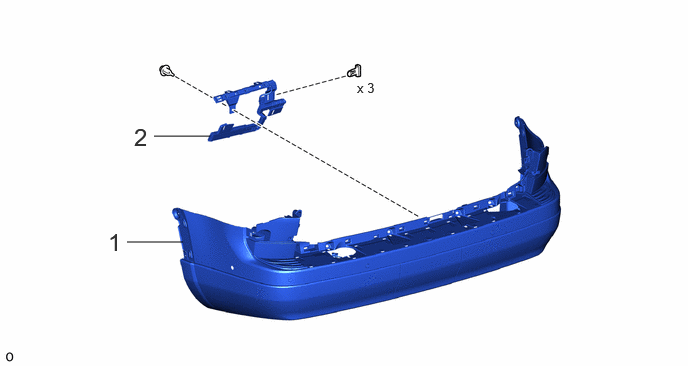

Fig 1: Kick Sensor Removal Components
GTY1216416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
1 REAR BUMPER ASSEMBLY - - - -
2 KICK DOOR CONTROL SENSOR ASSEMBLY 891B0 - - -
