Caution / Notice / Hint

HINT:

When the cable is disconnected/reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Lighting system (EXT) Cornering lights	Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.	Refer to INITIALIZATION [12/2023 - ]
Pre-collision system		Refer to INITIALIZATION [12/2023 - ]

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power back door system	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	Refer to INITIALIZATION [12/2023 - ]
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

COMPONENTS (REMOVAL)

Fig 1: Fuel Lid Lock Control Cable Assembly Removal Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	FRONT SEAT ASSEMBLY LH	-	-	-	-
2	DECK TRIM SIDE PANEL ASSEMBLY LH	64740C	-	-	-
3	NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	55606	-	-	-
4	DOOR SCUFF PLATE ASSEMBLY LH	67920	-	-	-
5	COWL SIDE TRIM BOARD LH	62112	-	-	-
6	CENTER PILLAR LOWER GARNISH LH	62414A	-	-	-

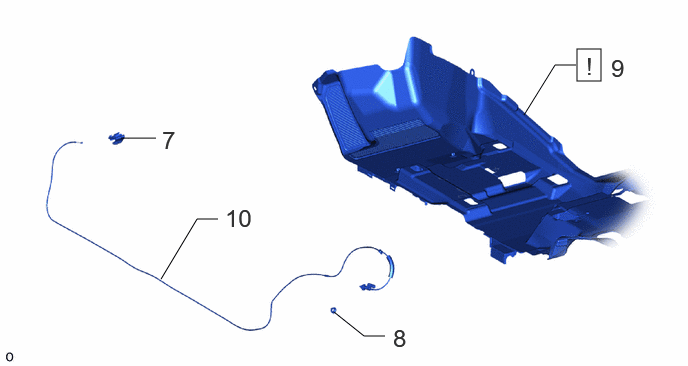

Fig 2: Fuel Lid Lock Control Cable Assembly Removal Components (2 Of 2)

Procedure		Part Name Code
7	FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY	77306	-	-	-
8	FUEL FILLER OPENING LID LOCK RETAINER	77377	-	-	-
9	FRONT FLOOR CARPET ASSEMBLY	58510D	See step 9	-	-
10	FUEL LID LOCK CONTROL CABLE SUB-ASSEMBLY	77035	-	-	-
